Removal Of Seat Belt Buckle

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before servicing SRS, turn the ignition switch off, disconnect both negative and positive battery terminals, then wait at least 3 minutes.
  1. Disconnect the negative and positive battery terminals.
  2. Remove the front seat from the vehicle. Refer to "REMOVAL AND INSTALLATION " with ventilation seat, and "REMOVAL AND INSTALLATION " without ventilation seat.
  3. Disconnect seat belt buckle harness connector (3), then release harness clip from the seat rail.
  4. Remove seat belt buckle anchor bolt (1), then remove seat belt buckle (2) from front seat.

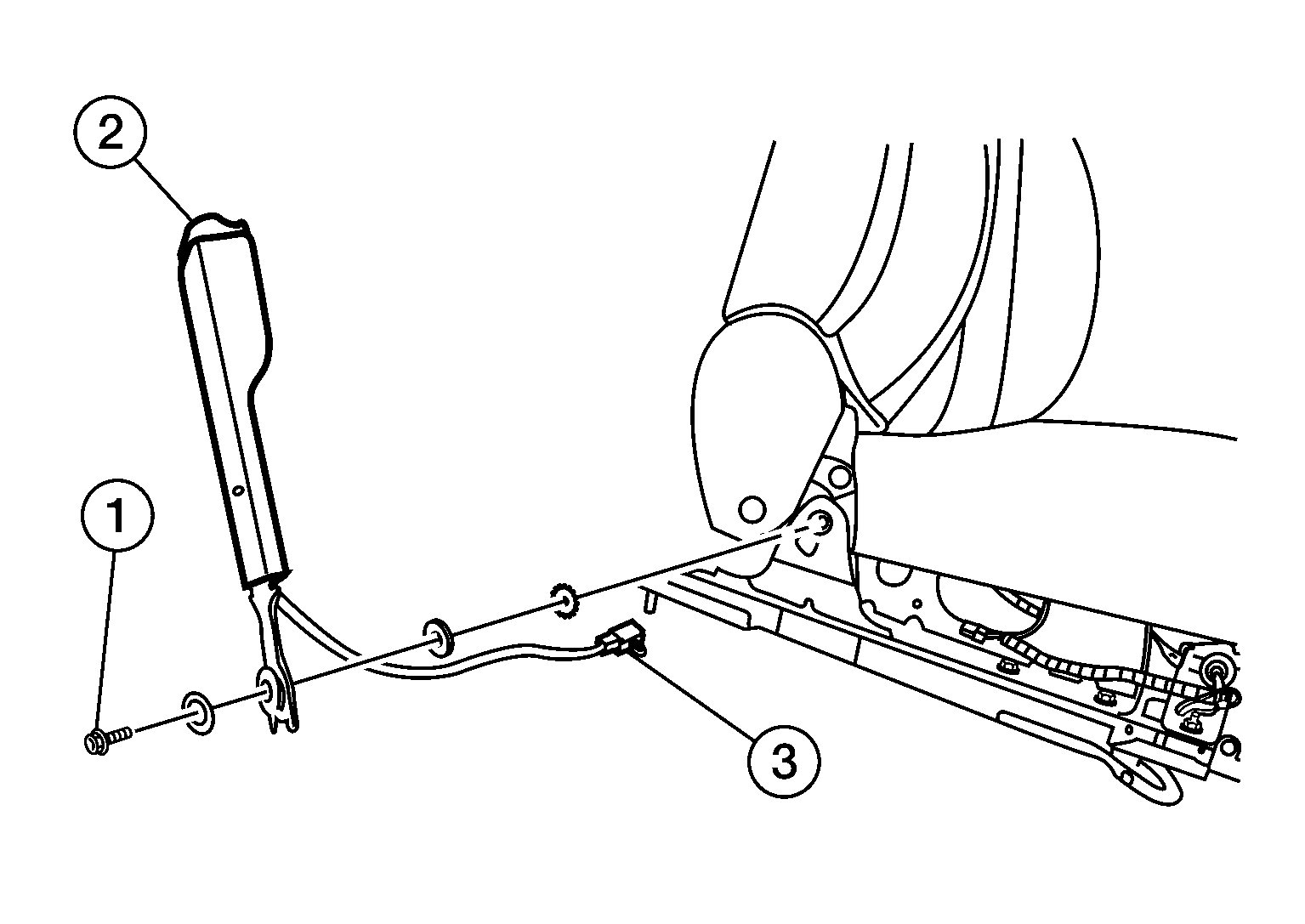

Fig 1: Identifying Seat Belt Buckle Anchor Bolt, Seat Belt Buckle And Seat Belt Buckle Harness Connector
G05878122Courtesy of NISSAN MOTOR CO., U.S.A.
