Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative and positive battery terminals, then wait at least 3 minutes.
  2. Remove the front seat belt retractor. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect the side air bag (satellite) sensor harness connector (3).

    4. ←: Vehicle front

  4. Remove the nuts (A), then remove side air bag (satellite) sensor (2) from center pillar (1) studs.

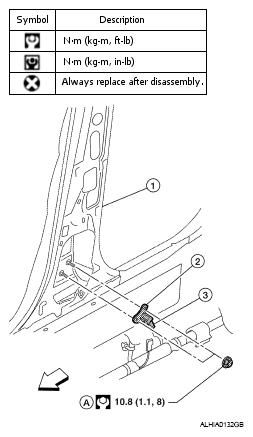

Fig 1: Side Air Bag (Satellite) Sensor And Center Pillar With Nuts With Torque Specifications
G05878144Courtesy of NISSAN MOTOR CO., U.S.A.
