Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative and positive battery terminals, then wait at least 3 minutes.
  2. Remove the glove box assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect the front passenger air bag module connector (1).
    NOTE: The figure shows installed condition of the front passenger air bag module without glove box in place.
  4. Remove front passenger air bag module bolt (A) from steering member (2).
    Fig 1: Front Passenger Air Bag Module Connector And Steering Member With Torque Specifications
    G05878134Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the remaining instrument panel from the vehicle. Refer to "REMOVAL AND INSTALLATION ".
  6. Remove the front passenger air bag module screws (A).

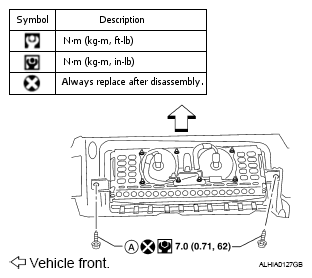

    Fig 2: Front Passenger Air Bag Module Screws With Torque Specifications
    G05878135Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Release the upper and lower front passenger air bag module tabs (A) from instrument panel and pad assembly (1).

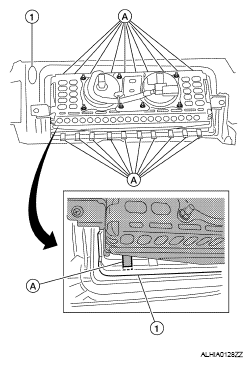

    Fig 3: Releasing Upper And Lower Front Passenger Air Bag Module Tabs From Instrument Panel And Pad Assembly
    G05878136Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Rotate and lift the front passenger air bag module away from the instrument panel, then remove.
