Removal and Installation: Installation

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not use old bolts after removal; replace with new bolts.
  1. Attach steering wheel switch assembly to driver air bag module.
  2. Route the driver air bag module harness through attachment hook on steering wheel.
  3. Place the driver air bag module near the steering wheel and attach connectors (A).

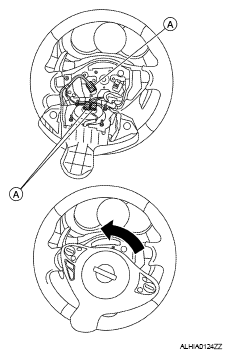

    Fig 1: Rotating Driver Air Bag Module Over Steering Wheel
    G05878129Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Lift the driver air bag module while rotating counterclockwise into position over steering wheel.
  5. Pushing upward into place, position the steering wheel switch assembly harness along the upper edge and install the driver air bag module into the steering wheel.
    • Make sure that the steering wheel switch assembly harness is routed above the center of the driver air bag module inflator (1) as shown (B), and is not routed so it is pinched between the driver air bag module inflator (1) and steering column shaft threads as shown (A).
    CAUTION:
    • Make sure the steering switch harness is correctly routed above the center of the driver air bag module inflator (1) as shown (B), and NOT incorrectly routed across the driver air bag module inflator as shown (A).
    • Be careful not to damage or pinch the harness while installing.
    • Tighten the driver air bag module bolts after centering the holes between the driver air bag module and the steering wheel horn contact bracket. If the holes are misaligned, the bolt threads may become damaged and the module will not install securely.

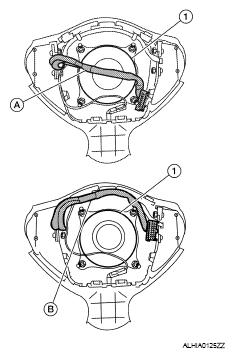

    Fig 2: Identifying Driver Air Bag Module Inflator
    G05878130Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install the driver air bag module bolts.
    CAUTION:
    • After the work is completed, make sure no system malfunction is detected by air bag warning lamp.
    • In case a malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function and delete the memory by CONSULT-III.
    • If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunctions. Refer to "SRS OPERATION CHECK ".
