Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

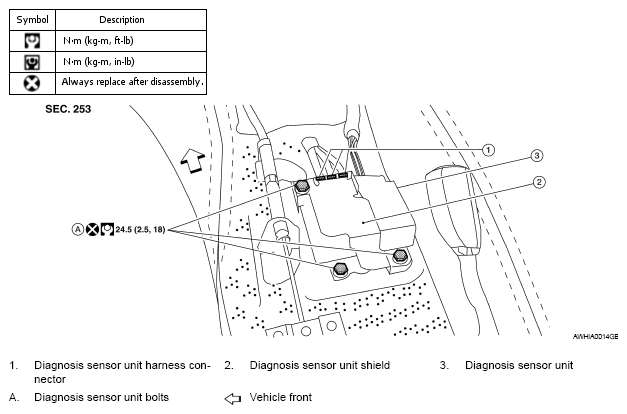

Fig 1: Diagnosis Sensor Unit Components With Torque Specifications
G05878146Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Disconnect the negative and positive battery terminals, then wait at least 3 minutes.
  2. Disconnect connector of each air bag module and seat belt pre-tensioner. Refer to "REMOVAL AND INSTALLATION ", "REMOVAL AND INSTALLATION ", "REMOVAL AND INSTALLATION ", "REMOVAL AND INSTALLATION " or "REMOVAL AND INSTALLATION ", "REMOVAL AND INSTALLATION ".
  3. Remove the center console. Refer to "DISASSEMBLY AND ASSEMBLY ".
  4. Disconnect the diagnosis sensor unit harness connectors.
  5. Remove the bolts, then remove the diagnosis sensor unit.
