Wiring Diagram - Ignition Power Supply -

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

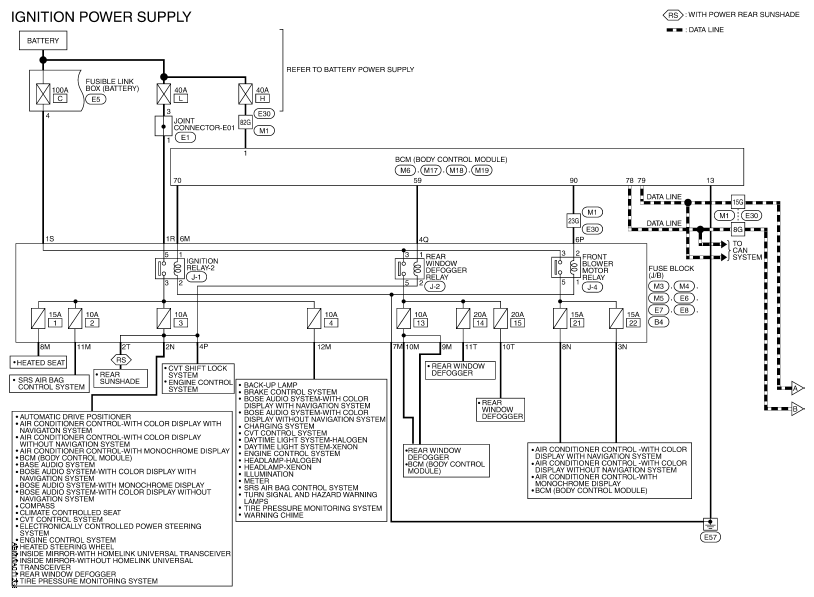

Fig 1: Ignition Power Supply - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

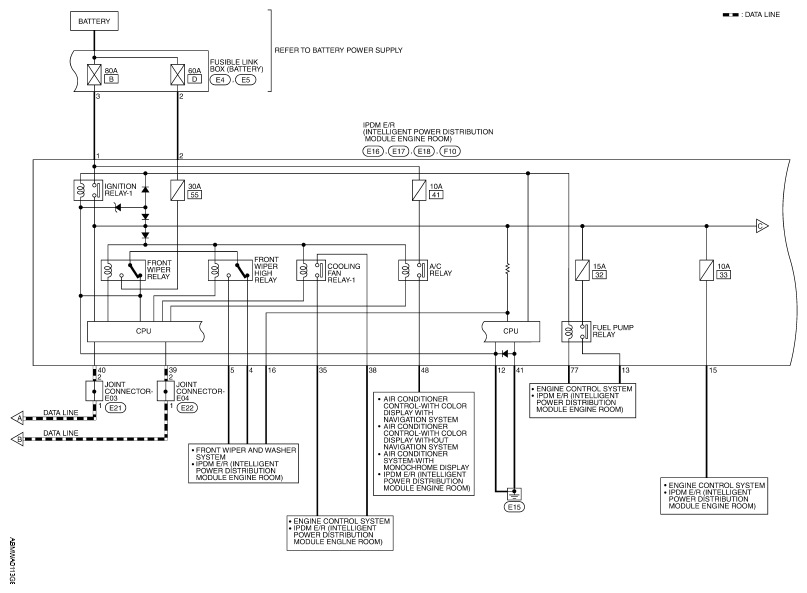

Fig 2: Ignition Power Supply - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

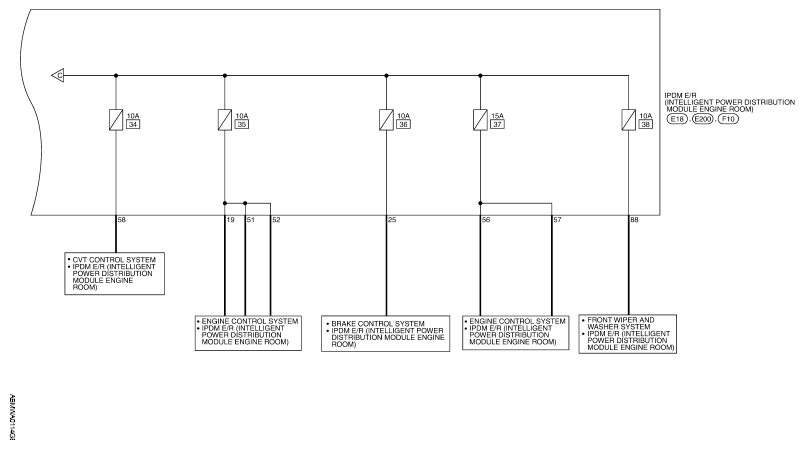

Fig 3: Ignition Power Supply - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

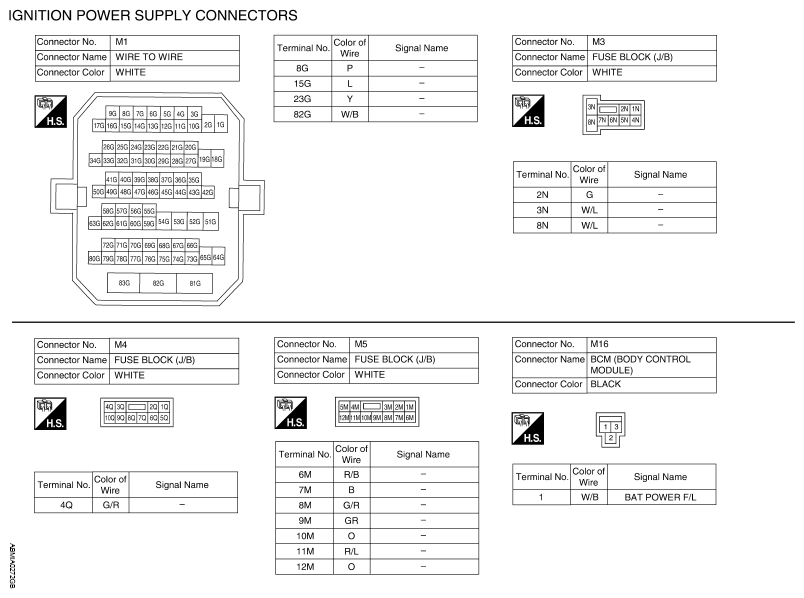

Fig 4: Identifying Ignition Power Supply Connector Terminals (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

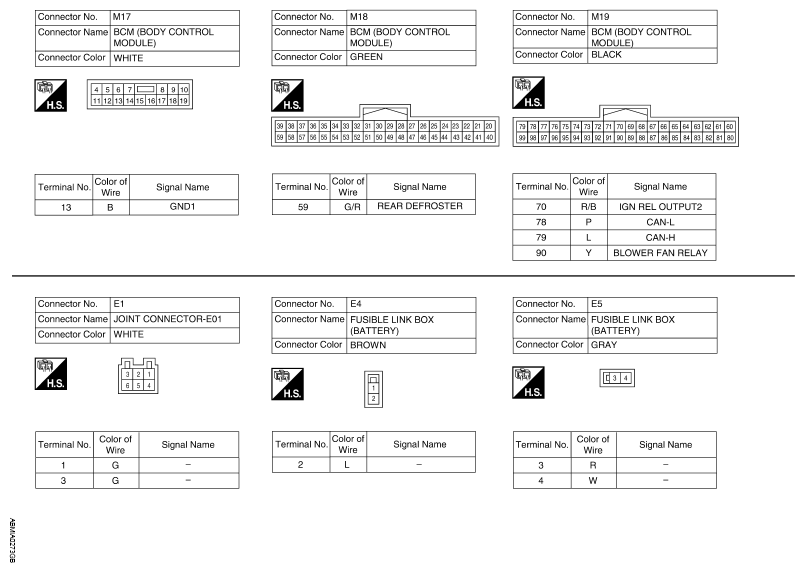

Fig 5: Identifying Ignition Power Supply Connector Terminals (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

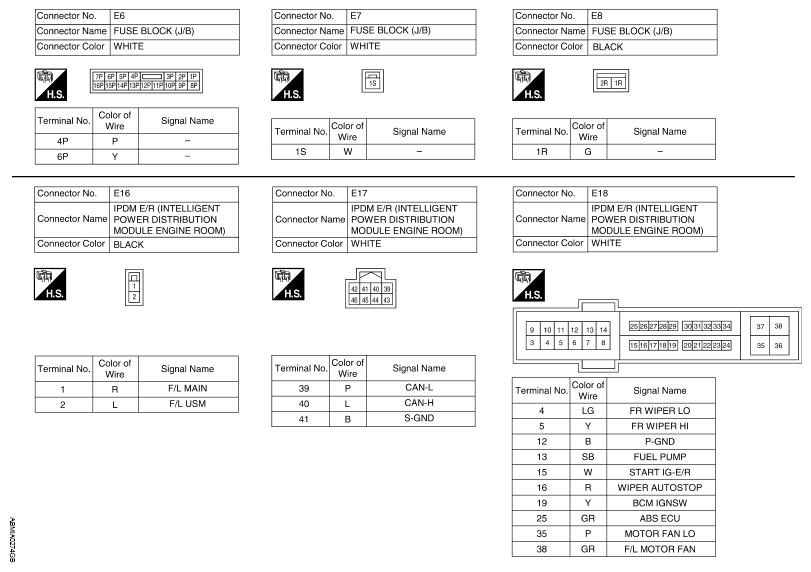

Fig 6: Identifying Ignition Power Supply Connector Terminals (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

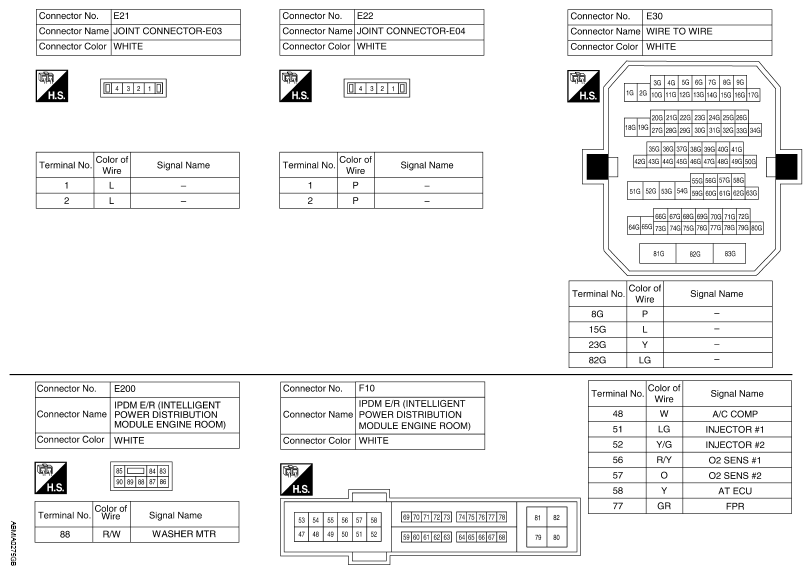

Fig 7: Identifying Ignition Power Supply Connector Terminals (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

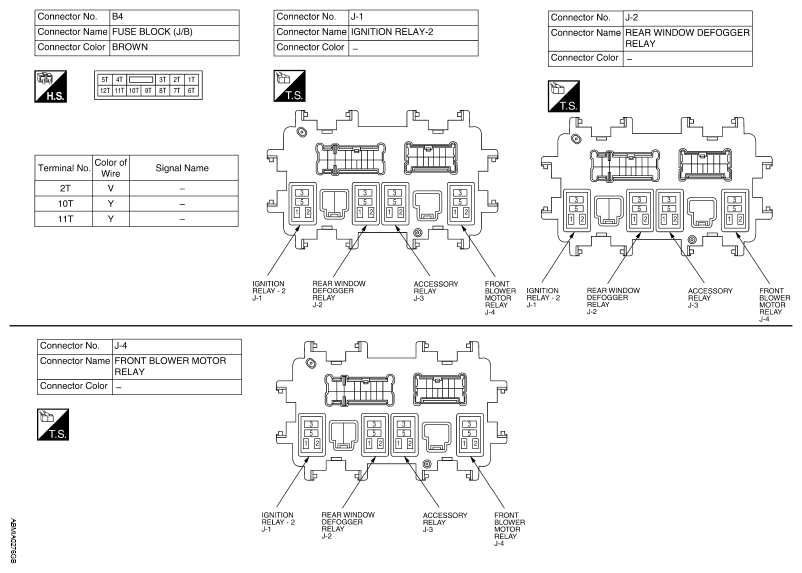

Fig 8: Identifying Ignition Power Supply Connector Terminals (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
