Wiring Diagram - Battery Power Supply -

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

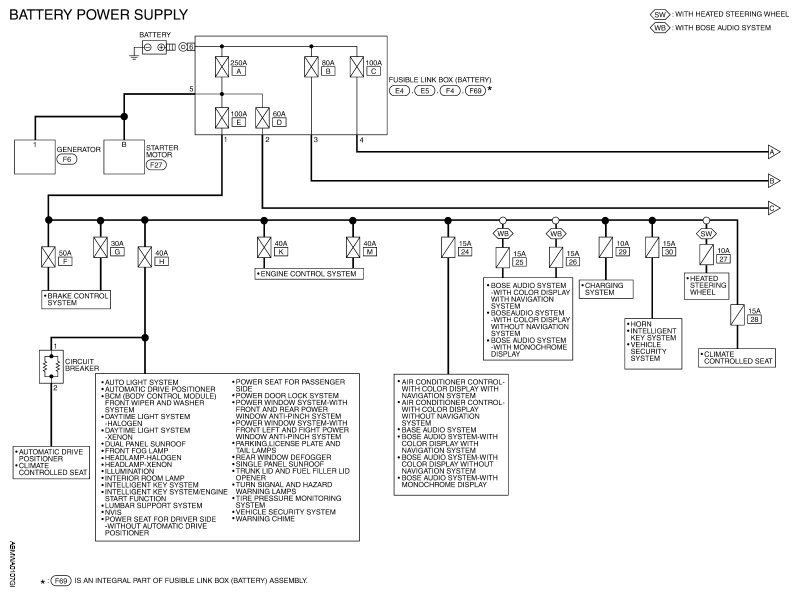

Fig 1: Battery Power Supply - Wiring Diagram (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

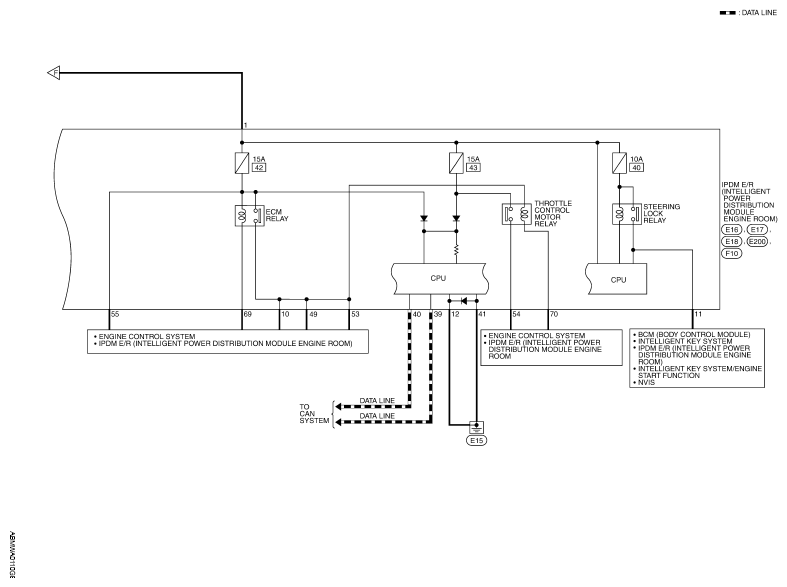

Fig 2: Battery Power Supply - Wiring Diagram (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

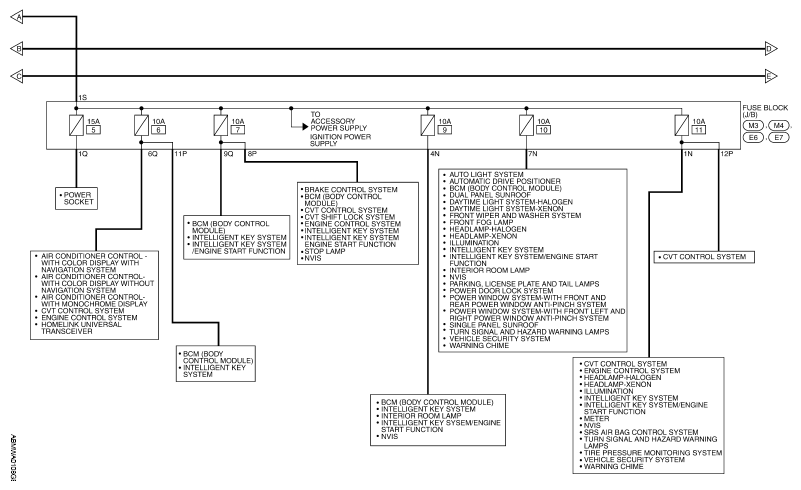

Fig 3: Battery Power Supply - Wiring Diagram (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

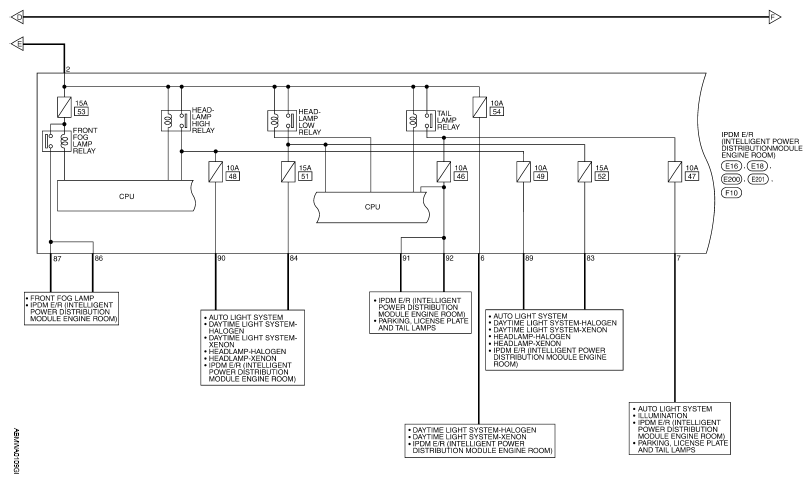

Fig 4: Battery Power Supply - Wiring Diagram (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

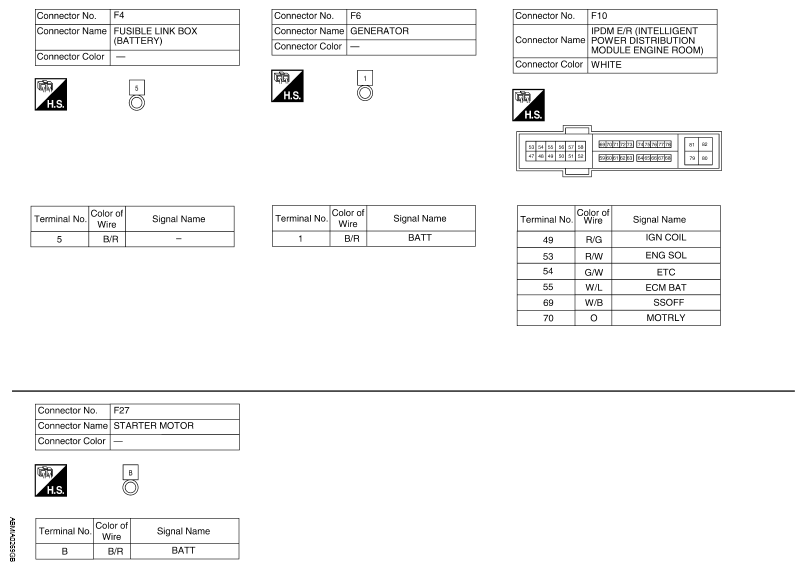

Fig 5: Identifying Battery Power Supply Connector Terminals (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

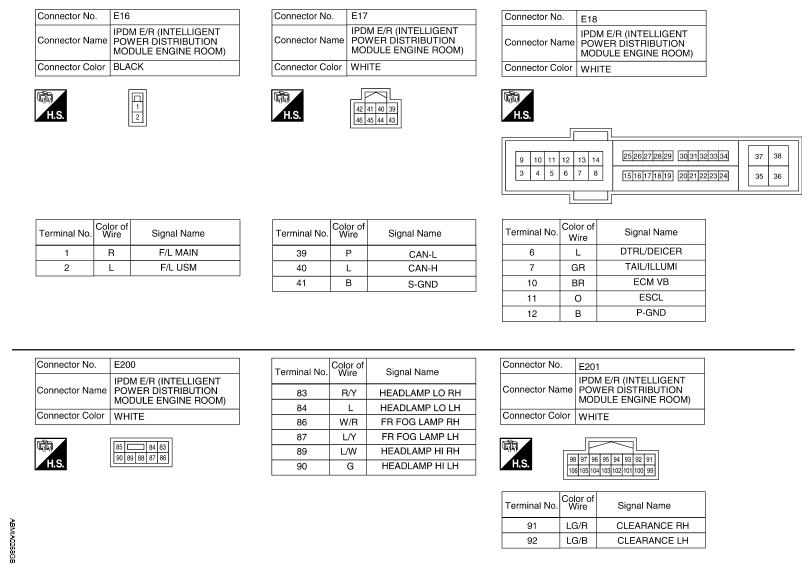

Fig 6: Identifying Battery Power Supply Connector Terminals (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

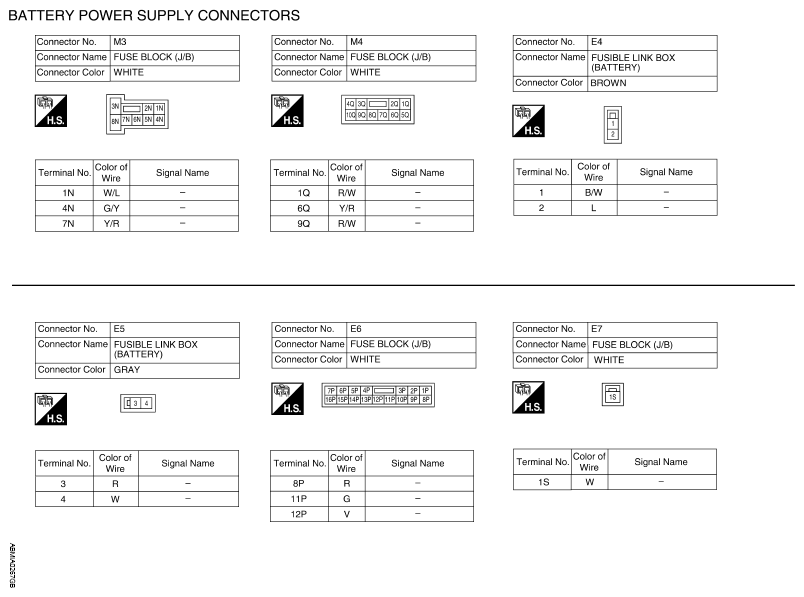

Fig 7: Identifying Battery Power Supply Connector Terminals (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
