Fuse, Connector and Terminal Arrangement

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

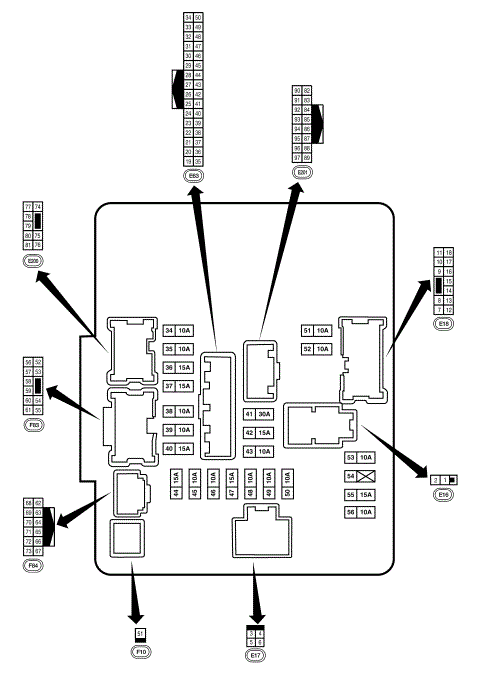

Fig 1: Identifying IPDM E/R, Fuse, Connector And Terminal Arrangement
G05874427Courtesy of NISSAN MOTOR CO., U.S.A.
