Room Lamp Harness
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

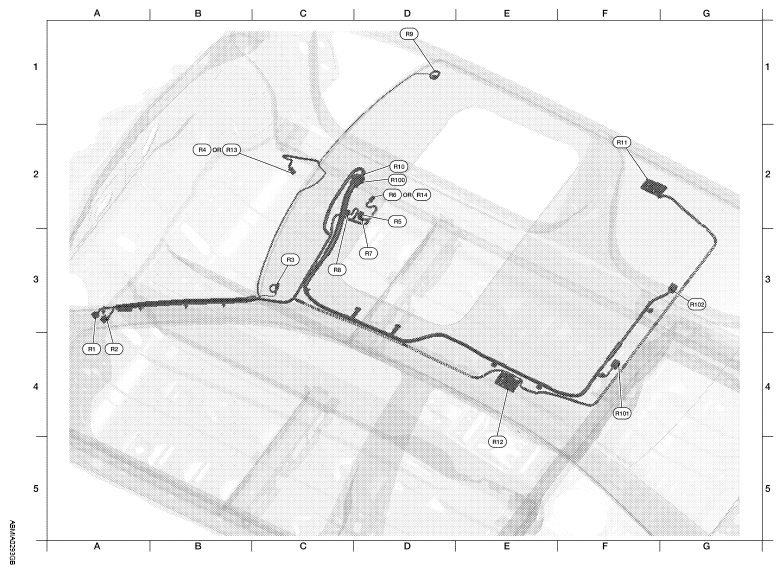

HARNESS REFERENCE
| A4 | R1 | W/16 | : To M7 | F2 | R11 | - | : Personal lamp rear RH |
| A4 | R2 | W/6 | : To M13 | E5 | R12 | - | : Personal lamp rear LH |
| C3 | R3 | W/2 | : Vanity mirror lamp LH | B2 | R13 | B/7 | : Auto anti-dazzling inside mirror (without homelink universal transceiver) |
| B2 | R4 | B/10 | : Auto anti-dazzling inside mirror (with homelink universal transceiver) | D2 | R14 | W/8 | : Sunroof switch (with dual panel sunroof) |
| D2 | R5 | W/10 | : Sunroof motor assembly (without dual panel sunroof) | Sunroof sub-harnesss | |||
| D2 | R6 | W/3 | : Sunroof switch (without dual panel sunroof) | D2 | R100 | W/12 | : To R10 |
| D3 | R7 | W/4 | : Microphone | F4 | R101 | GR/10 | : Sunroof motor assembly (with dual panel sunroof) |
| C3 | R8 | GR/16 | : Front room/map lamp assembly | G3 | R102 | GR/10 | : Sunshade motor assembly |
| D1 | R9 | W/2 | : Vanity mirror lamp RH | ||||
| D2 | R10 | W/12 | : To R100 | ||||
