Rear Door RH Harness

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

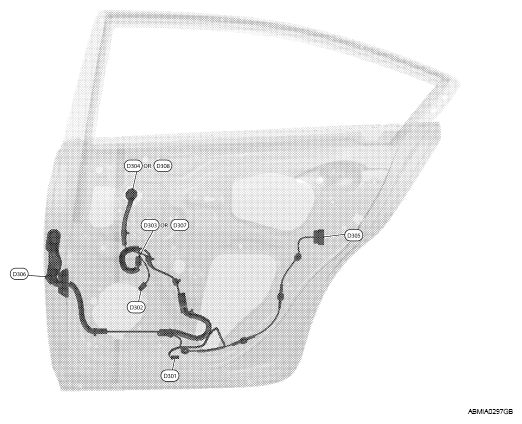

Fig 1: Identifying Rear Door RH Harness And Connectors
G05879123Courtesy of NISSAN MOTOR CO., U.S.A.
HARNESS REFERENCE

D301 W/2 : Rear step lamp RH D305 GR/6 : Rear door lock actuator RH
D302 BR/2 : Rear door speaker RH D306 W/10 : To B134
D303 W/8 : Rear power window switch RH (with front left and right power window anti-pinch system D307 W/6 : Rear power window switch RH (with front and rear power window anti-pinch system
D304 GR/6 : Rear power window switch RH (with front left and right power window anti-pinch system D307 W/6 : Rear power window motor RH (with front and rear power window anti-pinch system
