Rear Door LH Harness

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

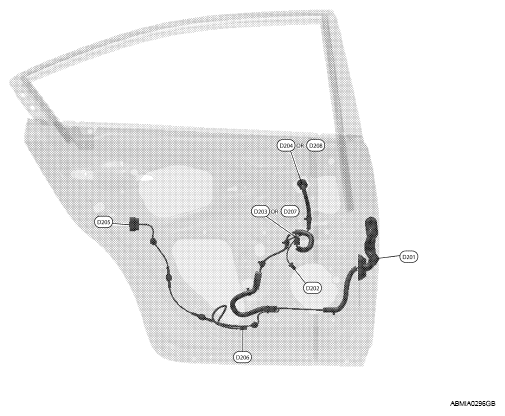

Fig 1: Identifying Rear Door LH Harness And Connectors
G05879122Courtesy of NISSAN MOTOR CO., U.S.A.
HARNESS REFERENCE

D201 W/10 : To B6 D205 GR/6 : Rear door lock actuator LH
D202 BR/2 : Rear door speaker LH D206 W/2 : Rear step lamp LH
D203 W/8 : Rear power window switch LH (with front left and right power window anti-pinch system D207 W/16 : Rear power window switch LH (with front and rear power window anti-pinch system
D204 G/6 : Rear power window switch LH (with front left and right power window anti-pinch system D208 G/6 : Rear power window motor LH (with front and rear power window anti-pinch system
