Main Harness
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

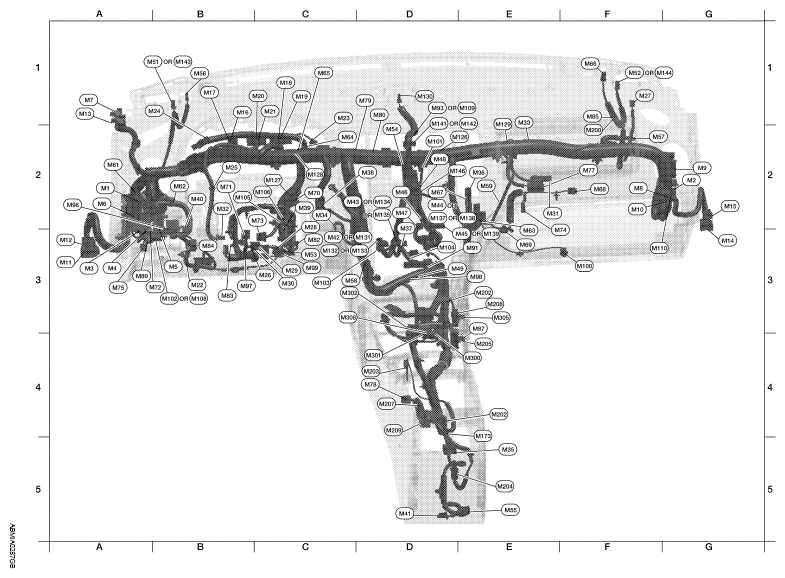

HARNESS REFERENCE
| A2 | M1 | SMJ | : To E30 | B2 | M71 | W/6 | : Tilt motor |
| G2 | M2 | W/24 | : To B101 | B3 | M72 | GR/6 | : VDC OFF switch |
| A3 | M3 | W/8 | : Fuse block (J/B) | C2 | M73 | W/6 | : Telescopic motor |
| A3 | M4 | W/10 | : Fuse block (J/B) | E2 | M74 | W/2 | : Trunk lid opener cancel switch |
| B3 | M5 | W/12 | : Fuse block (J/B) | A3 | M75 | B/2 | : Trunk lid opener switch |
| A2 | M6 | SMJ | : To B1 | F2 | M77 | Y/4 | : Front passenger air bag module |
| A1 | M7 | W/16 | : To R1 | D4 | M78 | W/10 | : CVT device |
| F2 | M8 | W/32 | : To B102 | D1 | M79 | - | : Body ground |
| G2 | M9 | BR/16 | : To B103 | D1 | M80 | - | : Diode-3 |
| F2 | M10 | W/16 | : To B104 | C3 | M82 | W/4 | : Paddle shifter (shift up) |
| A3 | M11 | W/16 | : To D1 | B2 | M83 | W/3 | : Paddle shifter (shift down) |
| A3 | M12 | W/24 | : To D2 | B3 | M84 | W/2 | : Circuit breaker |
| A1 | M13 | W/6 | : To R2 | F1 | M85 | W/24 | : To M200 |
| G2 | M14 | W/10 | : To D101 | E3 | M87 | BR/16 | : To M205 |
| G2 | M15 | W/16 | : To D102 | A3 | M89 | W/8 | : Rear control cancel switch |
| B1 | M16 | B/3 | : BCM (body control module) | D4 | M91 | W/24 | : iPod® adapter |
| B1 | M17 | W/16 | : BCM (body control module) | D1 | M93 | W/12 | : Display unit (with monochrome display without bluetooth) |
| C1 | M18 | G/40 | : BCM (body control module) | A2 | M96 | W/6 | : Heated steering wheel switch |
| C1 | M19 | B/40 | : BCM (body control module) | B3 | M97 | L/4 | : Heated steering relay |
| C1 | M20 | W/12 | : BCM (body control module) | E3 | M98 | W/16 | : A/C and AV switch assembly |
| C1 | M21 | GR/40 | : BCM (body control module) | C3 | M99 | BR/2 | : Foot lamp LH |
| B3 | M22 | W/16 | : Data link connector | F3 | M100 | BR/2 | : Foot lamp RH |
| C1 | M23 | W/12 | : Combination meter | D2 | M101 | B/10 | : A/C display |
| B1 | M24 | W/40 | : Combination meter | B3 | M102 | W/16 | : Door mirror remote control switch (without automatic drive positioner |
| B2 | M25 | W/8 | : Meter mode switch | C3 | M103 | GR/3 | : To M501 |
| C3 | M26 | W/2 | : Spiral cable | D4 | M104 | W/12 | : A/C switch assembly |
| F1 | M27 | B/4 | : Remote keyless entry receiver | B2 | M105 | Y/2 | : Driver air bag module |
| C3 | M28 | W/16 | : Combination switch | C2 | M106 | O/2 | : Driver air bag module |
| C3 | M29 | Y/6 | : Spiral cable | B3 | M108 | BR/16 | : Door mirror remote control switch (with automatic drive positioner |
| C3 | M30 | GR/8 | : Spiral cable | E1 | M109 | W/12 | : Display unit (with monochrome display with bluetooth) |
| E2 | M31 | W/6 | : Blower motor | F3 | M110 | W/16 | : To B136 |
| B2 | M32 | W/8 | : Electronic steering column lock | D2 | M126 | W/3 | : Intake door motor |
| E1 | M33 | W/3 | : To M125 | C2 | M127 | W/3 | : Mode door motor |
| C2 | M34 | W/2 | : In-vehicle sensor | C2 | M128 | W/3 | : Air mix door motor LH |
| E5 | M35 | Y/28 | : Air bag diagnosis sensor unit | E1 | M129 | W/3 | : Air mix door motor RH |
| E2 | M36 | W/3 | : Front passenger air bag off indicator | D1 | M130 | BR/2 | : Center speaker |
| D3 | M37 | W/40 | : A/C auto amp | D3 | M131 | W/20 | : AV control unit (with NAVI) |
| D2 | M38 | BR/8 | : Push-button ignition switch | C3 | M132 | W/20 | : Audio unit (Bose audio system-with monochrome display) |
| C2 | M39 | GR/6 | : ADP steering switch | D3 | M133 | W/20 | : Audio unit (base audio system) |
| B2 | M40 | W/12 | : Key slot | D2 | M134 | W/12 | : AV control unit (with NAVI) |
| D3 | M41 | GR/2 | : Front console antenna | D2 | M135 | W/12 | : Audio unit (base audio system) |
| C3 | M42 | W/20 | : AV control unit (without NAVI) | D2 | M137 | W/32 | : AV control unit (with NAVI) |
| C2 | M43 | W/12 | : AV control unit (without NAVI) | E2 | M138 | W/12 | : Audio unit (Bose audio system-with monochrome display) |
| D2 | M44 | W/24 | : AV control unit (without NAVI) | E3 | M139 | W/40 | : AV control unit (with NAVI) |
| D3 | M45 | W/16 | : AV control unit (without NAVI) | D2 | M141 | W/24 | : Display unit (with color display without NAVI) |
| D2 | M46 | W/32 | : AV control unit (without NAVI) | E1 | M142 | W/24 | : Display unit (with color display with NAVI) |
| D2 | M47 | W/12 | : AV control unit (without NAVI) | B1 | M143 | BR/2 | : Tweeter LH (base audio system) |
| D2 | M48 | GR/3 | : AV control unit (without NAVI) | F1 | M144 | BR/2 | : Tweeter LH (base audio system) |
| D3 | M49 | GR/2 | : Instrument panel antenna | D2 | M146 | GR3 | : AV control unit (with NAVI) |
| B1 | M51 | BR/2 | : Tweeter LH (Bose audio system) | Console sub-harness | |||
| F1 | M52 | BR/2 | : Tweeter RH (Bose audio system) | F2 | M200 | W/24 | : To M85 |
| C3 | M53 | W/8 | : Steering angle sensor | E4 | M202 | B/3 | : Front power socket |
| D2 | M54 | W/4 | : Hazard switch | D4 | M203 | BR/2 | : CVT device |
| E5 | M55 | B/4 | : Yaw rate/side/decel G sensor | E5 | M204 | B/3 | : Front console power socket |
| B1 | M56 | B/2 | : Sunload sensor | E4 | M205 | BR/16 | : To M87 |
| F2 | M57 | - | : Body ground | E4 | M207 | GR/16 | : iPod® side |
| C3 | M58 | L/4 | : Climate controlled seat relay | E3 | M208 | W/16 | : To M305 |
| E2 | M59 | W/12 | : Power steering control unit | E4 | M209 | W/8 | : Aux in jack |
| A2 | M61 | - | : Body ground | Console switch sub-harness | |||
| B2 | M62 | W/2 | : Tire pressure warning check connector | E3 | M300 | BR/6 | : Front heated seat switch RH |
| E3 | M63 | W/24 | : Automatic drive positioner control unit | D3 | M301 | W/6 | : Front heated seat switch LH |
| C2 | M64 | W/6 | : Joint connector-M01 | C3 | M302 | W/10 | : Climate controlled seat switch |
| C1 | M65 | W/6 | : Joint connector-M02 | E3 | M305 | W/16 | : To M208 |
| F1 | M66 | W/3 | : Optical sensor | E5 | M308 | W/6 | : Rear sunshade switch |
| D2 | M67 | W/5 | : Automatic drive positioner control unit | ||||
| F2 | M68 | BR/2 | : Glove box lamp | ||||
| E3 | M69 | W/2 | : Intake sensor | ||||
| C2 | M70 | W/4 | : Tire pressure receiver | ||||
