Front Door RH Harness

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

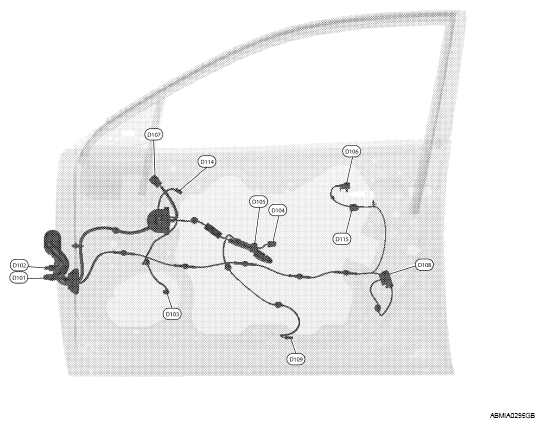

Fig 1: Identifying Front Door RH Harness And Connectors
G05879121Courtesy of NISSAN MOTOR CO., U.S.A.
HARNESS REFERENCE

D101 W/10 : To M14 D107 W/16 : Door mirror RH
D102 W/16 : To M15 D108 GR/6 : Front door lock actuator RH
D103 W/2 : Front door speaker RH D109 W/2 : Front step lamp RH
D104 W/6 : Front power window motor RH D114 GR/2 : Front door inside handle illumination RH
D105 W/16 : Power window and door lock/unlock switch RH D1!5 B/2 : Front outside handle illumination RH (request switch)
D106 GR/2 : Front outside handle RH (outside key antenna)
