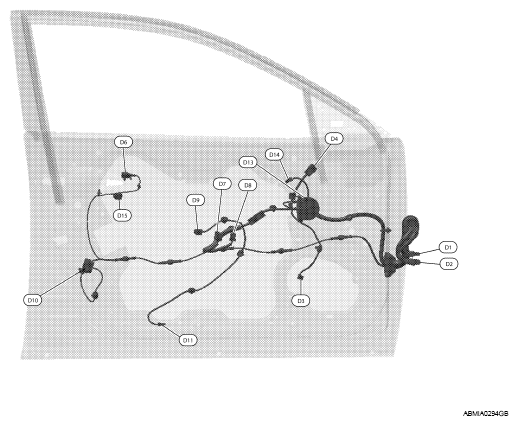

Front Door LH Harness
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
HARNESS REFERENCE
| D1 | W/16 | : To M11 | D9 | W/6 | : Front power window motor LH |
| D2 | W/24 | : To M12 | D10 | GR/6 | : Front door lock assembly LH |
| D3 | W/2 | : Front door speaker LH | D11 | W/2 | : Front step lamp LH |
| D4 | W/16 | : Door mirror LH | D13 | W/8 | : Seat memory switch |
| D6 | GR/2 | : Front outside handle LH (outside key antenna) | D14 | GR/2 | : Front door inside handle illumination LH |
| D7 | W/16 | : Main power window and door lock/unlock switch | D15 | B/2 | : Front outside handle illumination LH (request switch) |
| D8 | W/3 | : Main power window and door lock/unlock switch |
