Engine Room Harness
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

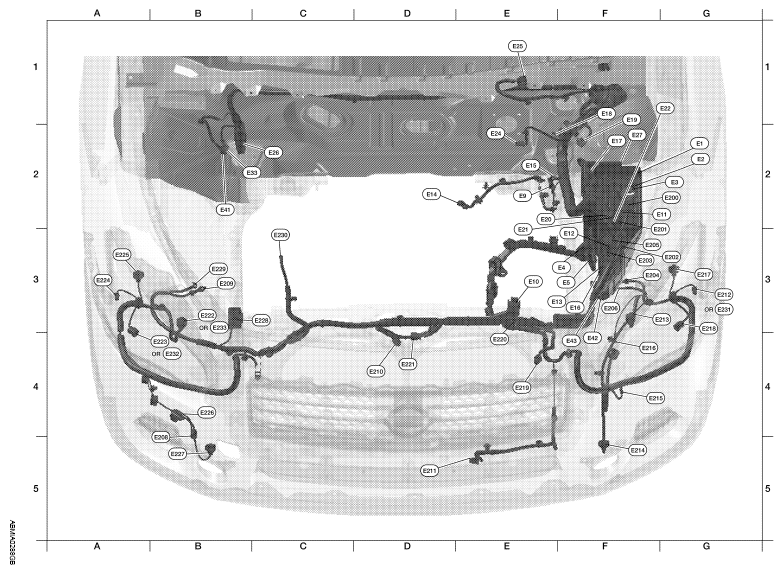

HARNESS REFERENCE
| G2 | E1 | W/6 | : Joint connector-E01 | F3 | E203 | W/6 | : To E12 |
| G2 | E2 | W/8 | : To E202 | F3 | E204 | - | : Body ground |
| G2 | E3 | W/16 | : To F1 | F3 | E205 | B/3 | : To E13 |
| F3 | E4 | BR/2 | : Fusible link box (battery) | F3 | E206 | - | : Body ground |
| F3 | E5 | GR/2 | : Fusible link box (battery) | B4 | E208 | W2 | : Washer fluid level switch |
| E2 | E9 | - | : Body ground | B3 | E209 | - | : Body ground |
| E3 | E10 | B/32 | : ECM | D4 | E210 | Y/2 | : Crash zone sensor |
| G2 | E11 | W/10 | : To F2 | D5 | E211 | B/2 | : Ambient sensor |
| F3 | E12 | W/6 | : To E203 | G3 | E212 | B/2 | : Front combination lamp LH (without xenon headlamp system) |
| F3 | E13 | B/3 | : To E205 | F3 | E213 | B/2 | : Front combination lamp LH |
| D2 | E14 | B/2 | : Power steering solenoid valve | F5 | E214 | B/2 | : Front fog lamp LH |
| E2 | E15 | - | : Body ground | F4 | E215 | B/1 | : Horn (low) |
| F3 | E16 | B/2 | : IPDM E/R (intelligent power distribution module engine room) | F4 | E216 | B/1 | : Horn (high) |
| F2 | E17 | W/8 | : IPDM E/R (intelligent power distribution module engine room) | G3 | E217 | GR/3 | : Front combination lamp LH |
| F1 | E18 | W/36 | : IPDM E/R (intelligent power distribution module engine room) | G3 | E218 | GR/2 | : Front combination lamp LH |
| F1 | E19 | GR/2 | : Front wheel sensor LH | E4 | E219 | B/3 | : Refrigerant pressure sensor |
| E2 | E20 | W/6 | : Joint connector-E02 | E4 | E220 | GR/4 | : Cooling fan motor-1 |
| E2 | E21 | W/4 | : Joint connector-E03 | D4 | E221 | GR/4 | : Cooling fan motor-2 |
| G1 | E22 | W/4 | : Joint connector-E04 | B3 | E222 | B/2 | : Front combination lamp RH (without daytime light system) |
| E2 | E24 | GR/2 | : Brake fluid level switch | B4 | E223 | B/2 | : Front combination lamp RH (without xenon headlight system) |
| E1 | E25 | GR/5 | : Front wiper motor | A3 | E224 | GR/3 | : Front combination lamp RH |
| C2 | E26 | B/26 | : ABS actuator and electric unit (control unit) | A3 | E225 | GR/2 | : Front combination lamp RH |
| A5 | E27 | L/4 | : Shift lock relay | B4 | E226 | B/2 | : Front washer motor |
| B2 | E33 | - | : Body Ground | B5 | E227 | B/2 | : Front fog lamp RH |
| B2 | E41 | GR/2 | : Front wheel sensor RH | C3 | E228 | B/5 | : Daytime light relay |
| F4 | E42 | BR/6 | : Cooling fan relay-2 | B3 | E229 | - | : Body ground |
| F4 | E43 | BR/6 | : Cooling fan relay-3 | C3 | E230 | - | : Generator |
| Front end module harness | G3 | E231 | GR/2 | : Front combination lamp LH (with xenon headlight system) | |||
| G2 | E200 | W/8 | : IPDM E/R (intelligent power distribution module engine room) | B4 | E232 | GR/2 | : Front combination lamp RH (with xenon headlight system) |
| G2 | E201 | W/16 | : IPDM E/R (intelligent power distribution module engine room) | B3 | E233 | B/2 | : Front combination lamp RH (with daytime light system) |
| G3 | E202 | W/8 | : To E2 | ||||
