Engine Room Harness (Passenger Compartment)
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

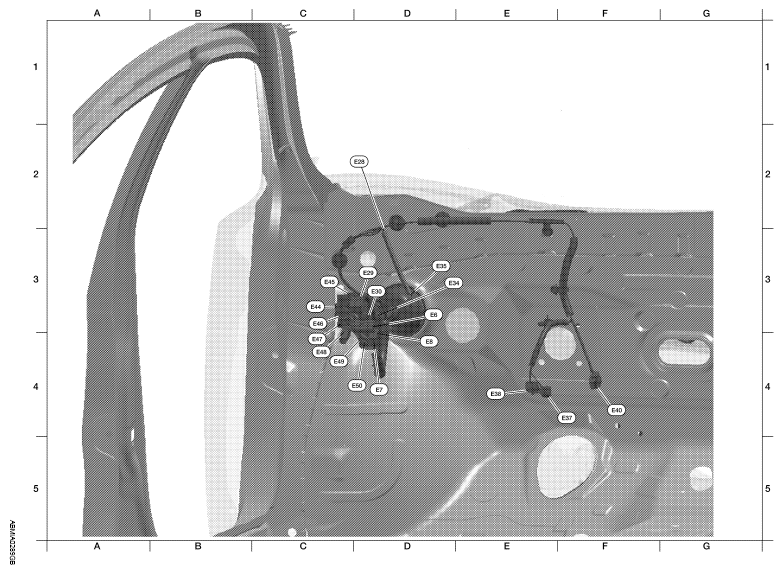

HARNESS REFERENCE
| D3 | E6 | W/16 | : Fuse block (J/B) | ||||
| D4 | E7 | W/1 | : Fuse block (J/B) | ||||
| D4 | E8 | B/2 | : Fuse block (J/B) | ||||
| D2 | E28 | BR/3 | : Intelligent key warning buzzer | ||||
| D3 | E29 | W/16 | : To B10 | ||||
| D3 | E30 | SMJ | : To M1 | ||||
| D3 | E34 | L/4 | : Back-up lamp relay | ||||
| D3 | E35 | B/1 | : Park brake switch | ||||
| F4 | E37 | BR/2 | : ASCD brake switch | ||||
| E4 | E38 | W/4 | : Stop lamp switch | ||||
| F4 | E40 | B/6 | : Accelerator pedal position switch | ||||
| C3 | E44 | BR/12 | : Junction block | ||||
| C3 | E45 | W/12 | : Junction block | ||||
| C3 | E46 | W/16 | : Junction block | ||||
| C4 | E47 | W/6 | : Junction block | ||||
| C4 | E48 | W/4 | : Junction block | ||||
| C4 | E49 | BR/4 | : Junction block | ||||
| D4 | E50 | W/2 | : Junction block |
