Body No. 2 Harness

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

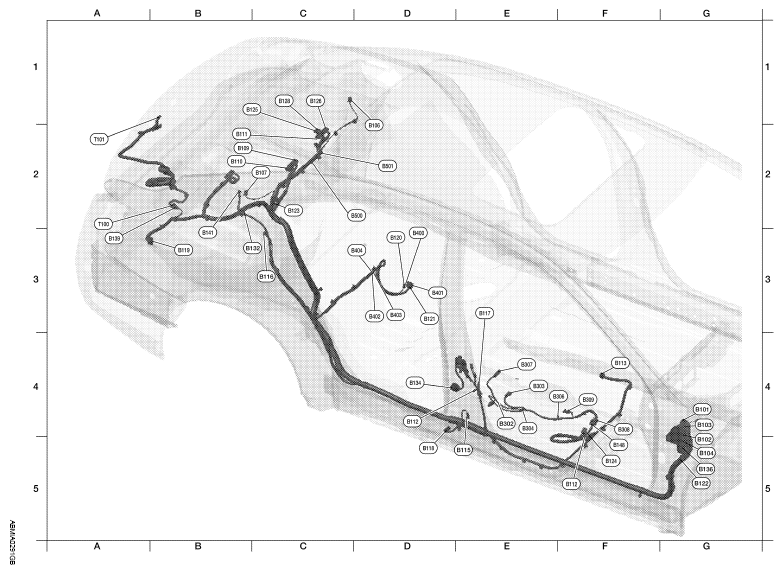

Fig 1: Identifying Body No. 2 Harness And Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

HARNESS REFERENCE

G4	B101	W/24	: To M2	B3	B132	-	: Body ground
G5	B102	W/32	: To M8	D4	B134	W/10	: To D306
G4	B103	BR/16	: To M9	G5	B136	W/16	: To M110
G5	B104	W/16	: To M10	A3	B139	W/4	: To T100
D1	B106	W/2	: Rear Subwoofer LH	B3	B141	Y/2	: RH side curtain air bag module
F4	B107	W/2	: Rear Subwoofer RH	F5	B148	W/8	: To B308
D4	B108	W/3	: Front door switch RH	RH front seat harness
B2	B109	BR/23	: BOSE speaker amp.	E4	B302	W/3	: Seat belt buckle switch RH
B2	B110	BR/14	: BOSE speaker amp.	E4	B303	W/8	: Occupant classification system control unit
B2	B111	W/16	: Satellite radio tuner or pre-wiring for satellite radio tuner	E4	B304	W/3	: Front seat heater RH
F5	B112	Y/2	: Front RH side air bag module	F4	B306	GR/3	: Sliding motor RH
F4	B113	Y/12	: Air bag diagnosis sensor unit	E4	B307	B/2	: Recling motor RH
E5	B115	Y/2	: Front RH seat belt pre-tensioner	F4	B308	W/8	: To B148
C3	B116	W/3	: Rear door switch RH	F4	B309	W/10	: Power seat switch RH
D3	B117	-	: Body ground	Rear seat harness
D5	B118	Y/2	: RH side air bag (satellite) sensor	D3	B400	GR/6	: To B120
B3	B119	W/32	: Rear view camera control unit	D3	B401	W/4	: To B121
D3	B120	GR/6	: To B400	D3	B402	W/4	: Rear control switch
D3	B121	W/4	: To B401	D3	B403	W/2	: Rear control switch
G5	B122	W/4	:Joint connector-B21.	D3	B404	GR/2	: Rear control switch
C3	B123	W/4	:Joint connector-B22.	Rear parcel shelf harness
F5	B124	Y/2	: To B305	D2	B500	W/3	: To B28
B1	B125	W/8	: Bluetooth control unit (with Monochrome display)	D2	B501	GR/2	: High mounted stop lamp (with rear sunshade)
C1	B126	W/32	: Bluetooth control unit	Tail sub-harness
C1	B128	W/8	: Bluetooth control unit (with color display)	A2	T100	W/4	: To B139
F5	B112	Y/2	: Front RH side air bag module	A2	T101	W/4	: Rear view camera
