Body Harness
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

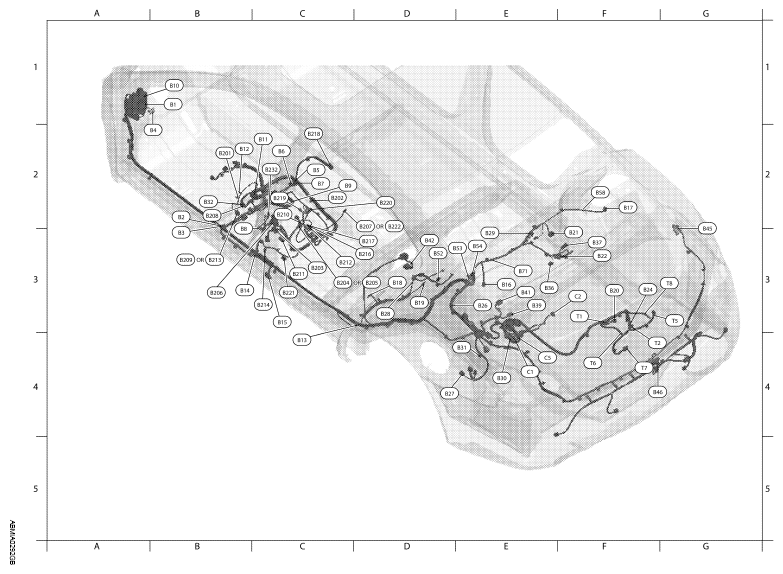

HARNESS REFERENCE
| B1 | B1 | SMJ | : To M6 | LH front seat harness | |||
| B2 | B2 | B/6 | : Joint connector-B01 | B2 | B201 | W/8 | : To B12 |
| B3 | B3 | W/4 | : Joint connector-B02 | C2 | B202 | W/3 | : Seat belt buckle switch LH |
| B2 | B4 | BR/12 | : Fuse block (J/B) | C3 | B203 | W/32 | : Driver seat control unit |
| C2 | B5 | - | : Body ground | C3 | B204 | W/6 | : Front power seat LH |
| C2 | B6 | W/10 | : To D201 | D3 | B205 | W/6 | : Front power seat LH (with automatic drive positioner) |
| C2 | B7 | - | : Body ground | B3 | B206 | W/12 | : Front power seat LH (with automatic drive positioner) |
| B2 | B8 | W/3 | : Front door switch LH | D2 | B207 | B/2 | : Reclining motor (without automatic drive positioner) |
| C2 | B9 | Y/12 | : Air bag diagnosis sensor unit | C3 | B208 | W/16 | : To B32 |
| B1 | B10 | W/16 | : To E29 | B3 | B209 | W/10 | : Power seat switch LH (without automatic drive positioner) |
| C2 | B11 | Y/2 | : Front LH side air bag module | C2 | B210 | GR/3 | : Front seat heater LH |
| B2 | B12 | W/8 | : To B201 | C3 | B211 | W/12 | : Driver seat control unit |
| C4 | B13 | W/4 | : Joint connector-B03 | C3 | B212 | B/16 | : Climate control seat control unit |
| B3 | B14 | Y/2 | : Front LH seat belt pre-tensioner | B3 | B213 | W/10 | : Power seat switch LH (with automatic drive positioner) |
| C3 | B15 | Y/2 | : LH side air bag (satellite) sensor | C3 | B214 | W/4 | : Lumbar support switch |
| E3 | B16 | W/2 | : Subwoofer LH | D3 | B216 | B/8 | : Climate control seat control unit |
| E5 | B17 | W/2 | : Subwoofer RH | D3 | B217 | B/6 | : Climate control seat control unit |
| D3 | B18 | W/3 | : Rear door switch LH | C2 | B218 | W/4 | : Seat back thermal electric device |
| D3 | B19 | - | : Body ground | C2 | B219 | W/4 | : Seat cushion thermal electric device |
| F3 | B20 | L/20 | : Joint connector-B05 | D2 | B220 | W/5 | : Climate control seat blower motor |
| F2 | B21 | W/10 | : Subwoofer amp. | C3 | B221 | B/2 | : Lumbar support Motor |
| F3 | B22 | W/6 | : Rear sunshade unit | D2 | B222 | W/5 | : Reclining motor (with automatic drive positioner) |
| F3 | B24 | W/8 | : To T2 | Tail harness | |||
| E3 | B26 | W/4 | : Joint connector - B04 | F3 | T1 | BR/2 | : High mounted stop lamp (with rear spoiler) |
| D4 | B27 | W/4 | : Fuel lid door lock actuator | F4 | T2 | W/8 | : To B24 |
| D3 | B28 | W/3 | : To B500 | G3 | T5 | BR/2 | : Trunk opener request switch |
| E3 | B29 | GR/2 | : Rear parcel shelf antenna | F4 | T6 | BR/2 | : Licence plate lamp LH |
| E4 | B30 | W/6 | : Rear combination lamp | LH F4 | T7 | W/4 | : Trunk lamp switch and trunk release solenoid |
| E4 | B31 | GR/4 | : To C5 | G3 | T8 | BR/2 | : Licence plate lamp RH |
| B2 | B32 | W/16 | : To B208 | Chassis harness | |||
| E3 | B36 | W/2 | : Trunk room lamp | E4 | C1 | BR/2 | : Rear wheel sensor LH |
| F3 | B37 | W/2 | : High mounted stop lamp (Without rear sunshade) | F3 | C2 | GR/2 | : Rear wheel sensor RH |
| E3 | B39 | B/2 | : EVAP canister vent control valve | E4 | C5 | GR/4 | : To B31 |
| E3 | B41 | GR/3 | : EVAP control system pressure sensor | ||||
| D3 | B42 | GR/5 | : Fuel level sensor unit and fuel pump | ||||
| G2 | B45 | W/6 | : Rear combination lamp RH | ||||
| F4 | B46 | GR/2 | : Rear bumper antenna | ||||
| D3 | B52 | W/1 | : Rear window defogger condenser | ||||
| D3 | B53 | B/1 | : Rear window defogger | ||||
| E3 | B54 | B/1 | : Rear window defogger | ||||
| F2 | B58 | - | : Body ground | ||||
| E3 | B71 | Y/2 | : LH side curtain air bag module | ||||
