Terminal Arrangement

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

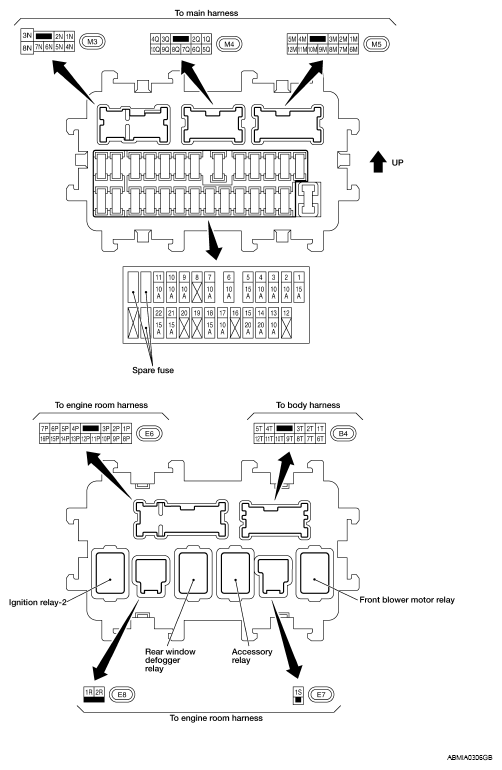

Fig 1: Identifying Fuse Block - Junction Box (J/B) Terminals Arrangement

Courtesy of NISSAN MOTOR CO., U.S.A.
