Consult-III Checking System: Wiring Diagram
WARNING:
This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

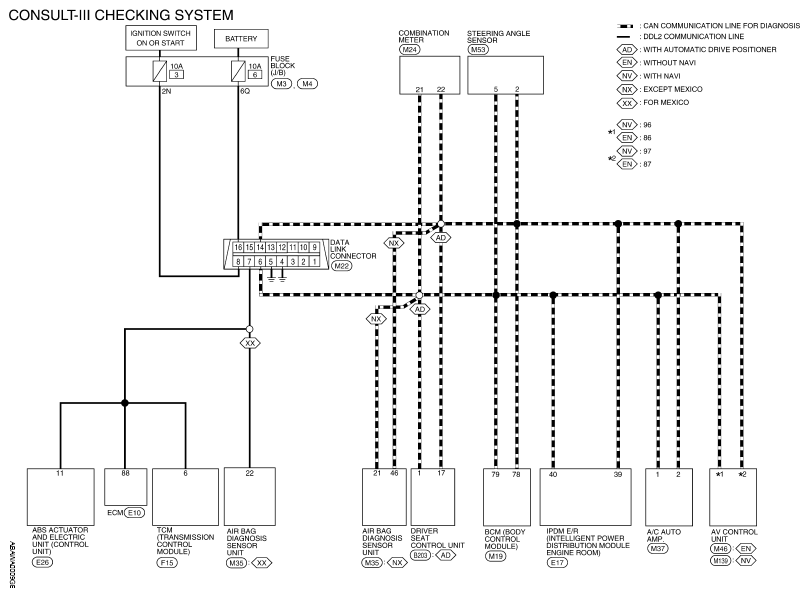

Fig 1: Consult-III Checking System - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
