Removal and Installation: Component

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

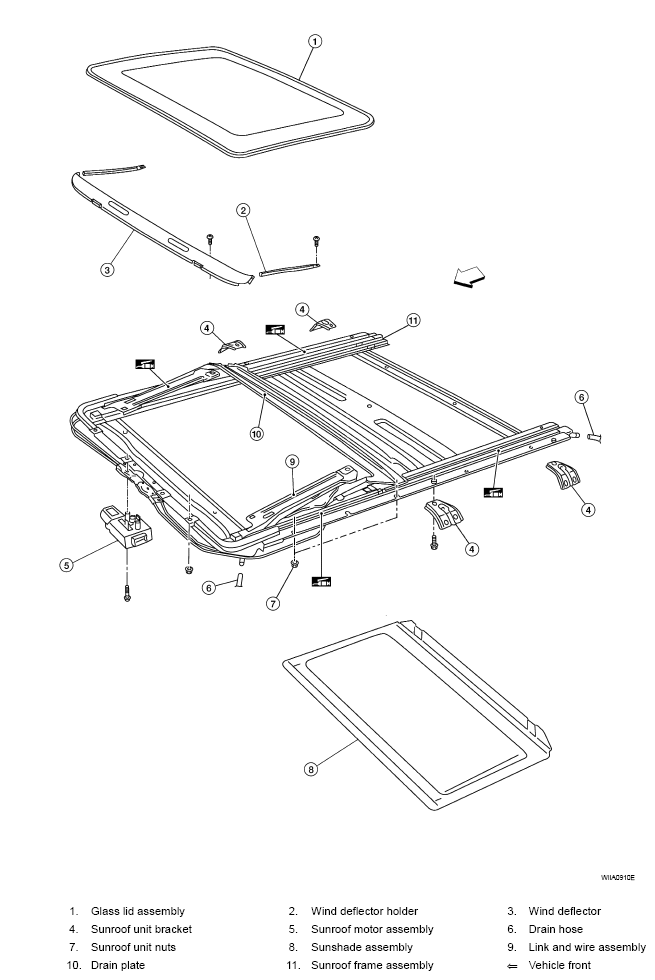

Fig 1: Identifying Sunroof Components

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Always work with a helper.
Before removal, fully close the glass lid assembly. Then, after removal, do not move the motor assembly.
Handle glass lid assembly with care to avoid damage.

NOTE: For easier installation, mark each point before removal.
