Warning Lamp Flash Code Chart

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

< Diagnosis results (previously stored in the memory) might not be erased after repair or intermittent malfunctions have been detected in the past. >

WARNING LAMP FLASH CODE CHART

Flash pattern	Repair order
	Go to DIAGNOSTIC PROCEDURES 2 and 3 .

< Driver air bag module >

WARNING LAMP FLASH CODE CHART - DRIVER AIR BAG MODULE

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace the spiral cable. Replace driver air bag module. Replace the air bag diagnosis sensor unit. Replace the related harness.

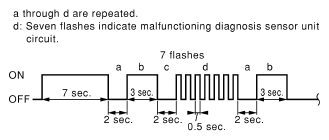

< Air bag diagnosis sensor unit >

WARNING LAMP FLASH CODE CHART - AIR BAG DIAGNOSIS SENSOR UNIT

Flash pattern	Repair order
	Visually check the wiring harness connections. Replace the harness if it has visible damage. Replace the air bag diagnosis sensor unit. Replace the related harness.

< Front passenger air bag module >

WARNING LAMP FLASH CODE CHART

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace front passenger air bag module. Replace the air bag diagnosis sensor unit. Replace the related harness.

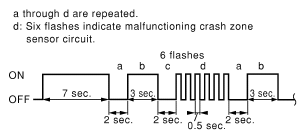

< Crash zone sensor >

CRASH ZONE SENSOR FLASH PATTERN

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace the crash zone sensor. Replace the air bag diagnosis sensor unit. Replace the related harness.

< Front RH seat belt pre-tensioner >

FRONT RH SEAT BELT PRE-TENSIONER PATTERN CHART

Flash pattern	Repair order
	Visually check the wiring harness connections. Replace the harness if it has visible damage. Replace front RH seat belt pre-tensioner. Replace the air bag diagnosis sensor unit. Replace the related harness.

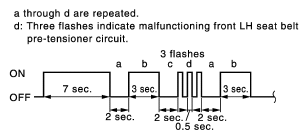

< Front LH seat belt pre-tensioner >

FRONT LH SEAT BELT PRE-TENSIONER FLASH PATTERN

Flash pattern	Repair order
	Visually check the wiring harness connections. Replace the harness if it has visible damage. Replace front LH seat belt pre-tensioner. Replace the air bag diagnosis sensor unit. Replace the related harness.

< RH side air bag (Satellite) sensor >

RH SIDE AIR BAG (SATELLITE) SENSOR FLASH PATTERN

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace the RH side air bag (Satellite) sensor. Replace the air bag diagnosis sensor unit. Replace the related harness.

< LH side air bag (Satellite) sensor >

LH SIDE AIR BAG (SATELLITE) SENSOR FLASH PATTERN

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace the LH side air bag (Satellite) sensor. Replace the air bag diagnosis sensor unit. Replace the related harness.

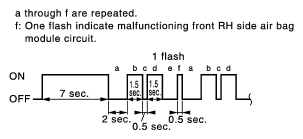

< Front RH side air bag module >

FRONT RH SIDE AIR BAG MODULE FLASH PATTERN

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace front RH seat back assembly. Replace the air bag diagnosis sensor unit. Replace the related harness.

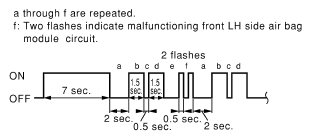

< Front LH side air bag module >

FRONT LH SIDE AIR BAG MODULE FLASH PATTERN

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace front LH seat back assembly. Replace the air bag diagnosis sensor unit. Replace the related harness.

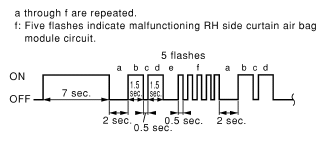

< RH side curtain air bag module >

RH SIDE CURTAIN AIR BAG MODULE FLASH PATTERN

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace RH side curtain air bag module. Replace the air bag diagnosis sensor unit. Replace the related harness.

< LH side curtain air bag module >

LH SIDE CURTAIN AIR BAG MODULE FLASH PATTERN

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace LH side curtain air bag module. Replace the air bag diagnosis sensor unit. Replace the related harness.

< Occupant classification system >

OCCUPANT CLASSIFICATION SYSTEM FLASH PATTERN

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace the RH front seat cushion occupant classification system control unit assembly. Replace the air bag diagnosis sensor unit.

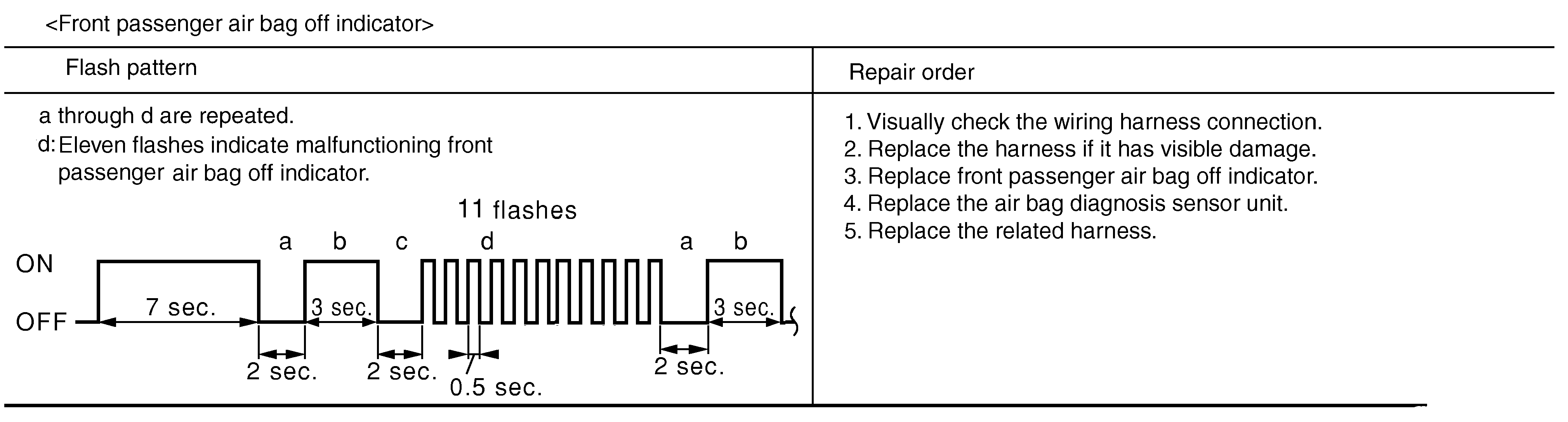

< Front passenger air bag off indicator >

FRONT PASSENGER AIR BAG OFF INDICATOR FLASH PATTERN

Flash pattern	Repair order
	Visually check the wiring harness connection. Replace the harness if it has visible damage. Replace front passenger air bag off indicator. Replace the air bag diagnosis sensor unit. Replace the related harness.
