Trouble Diagnosis: Schematic

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

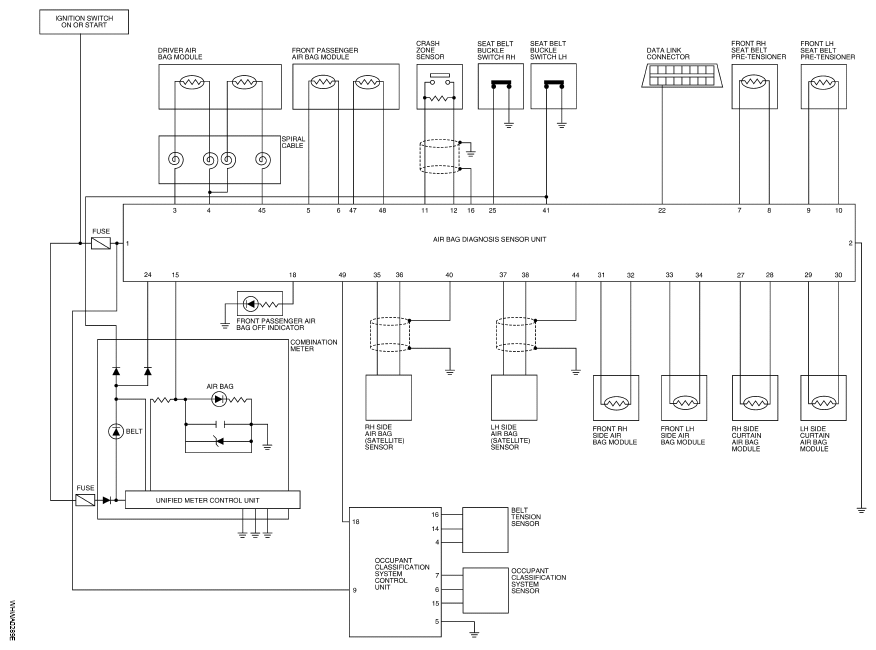

Fig 1: Schematic - SRS
G04916648Courtesy of NISSAN MOTOR CO., U.S.A.
