Wiring Diagram - SHADE -

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

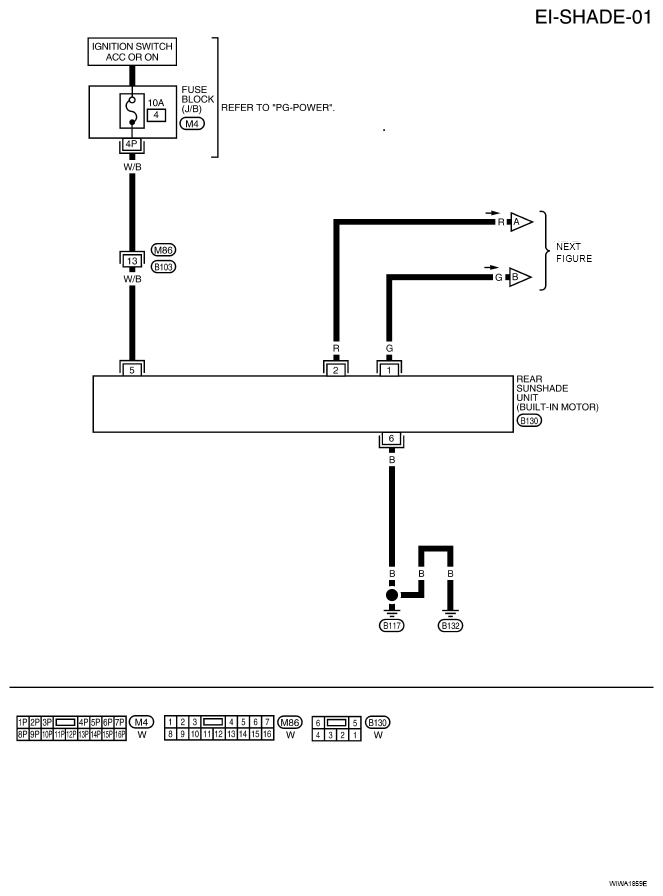

Fig 1: Wiring Diagram - EI-SHADE-01
G04917288Courtesy of NISSAN MOTOR CO., U.S.A.

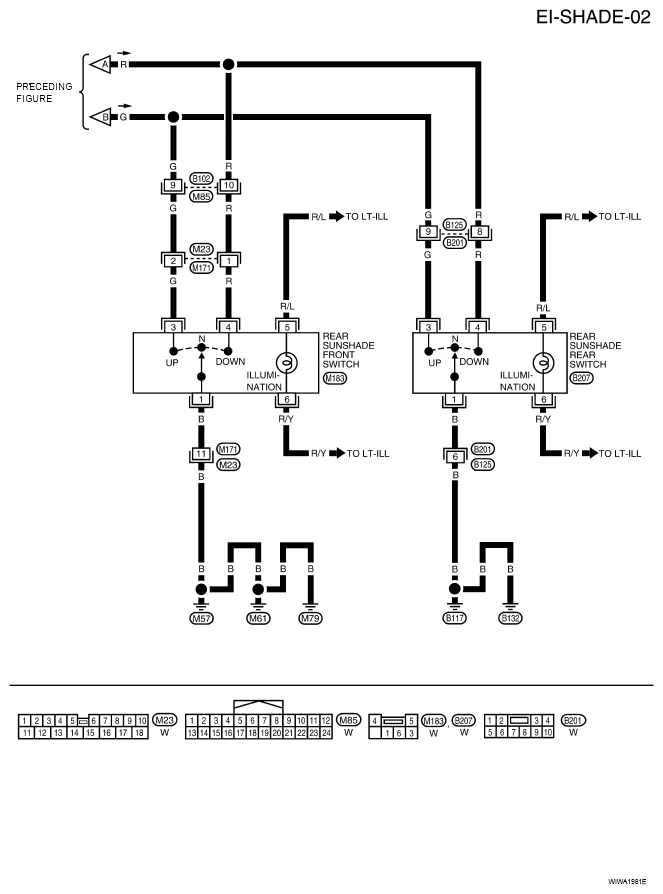

Fig 2: Wiring Diagram - EI-SHADE-02
G04917289Courtesy of NISSAN MOTOR CO., U.S.A.
