Fender Protector: Components

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

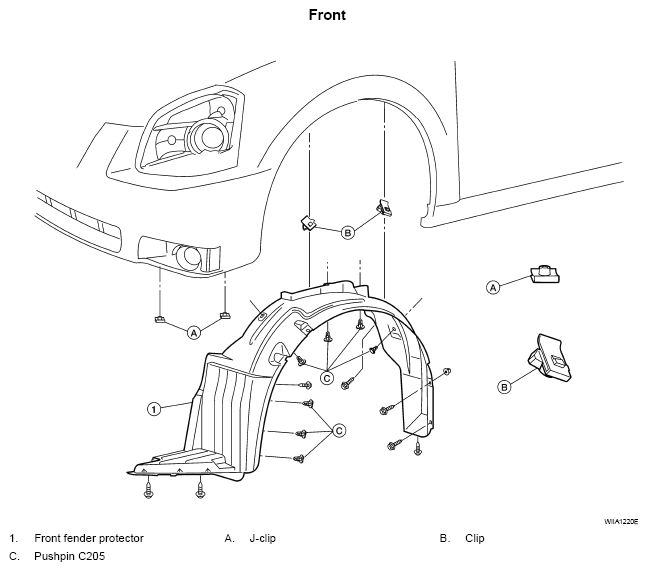

Fig 1: Identifying Fender Protector Components (Front)

Courtesy of NISSAN MOTOR CO., U.S.A.

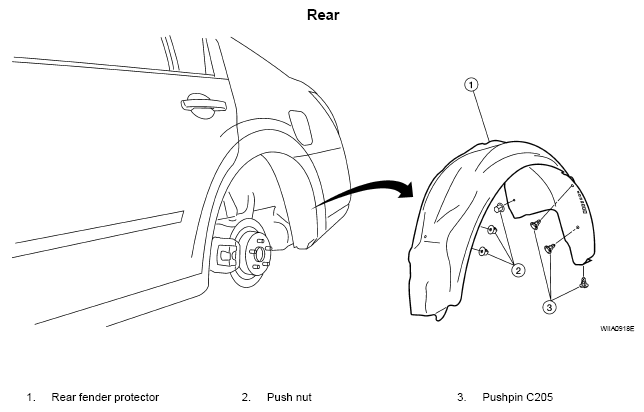

Fig 2: Identifying Fender Protector Components (Rear)

Courtesy of NISSAN MOTOR CO., U.S.A.
