With Front And Rear Heated Seats

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

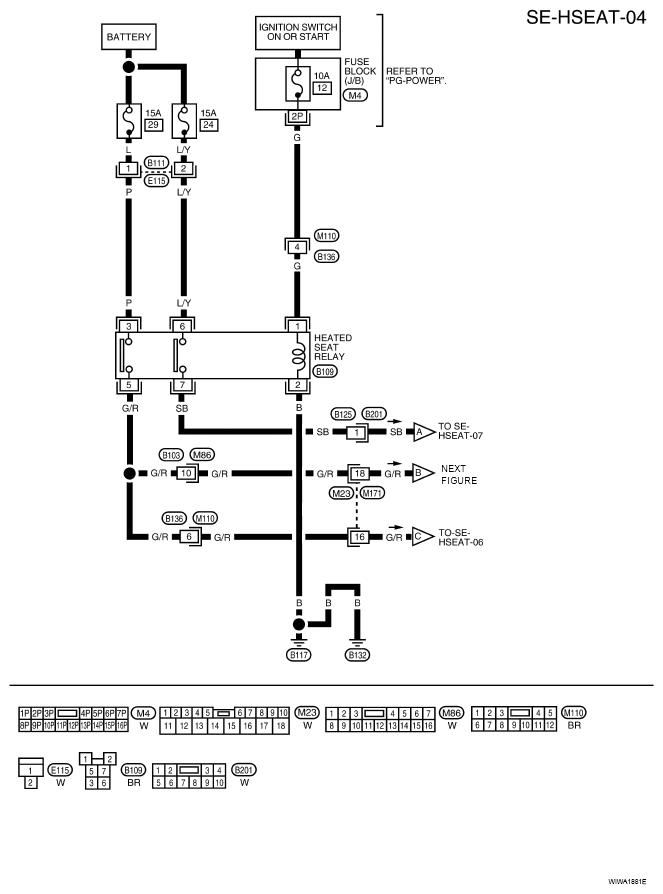

Fig 1: Wiring Diagram - SE-HSEAT-04

Courtesy of NISSAN MOTOR CO., U.S.A.

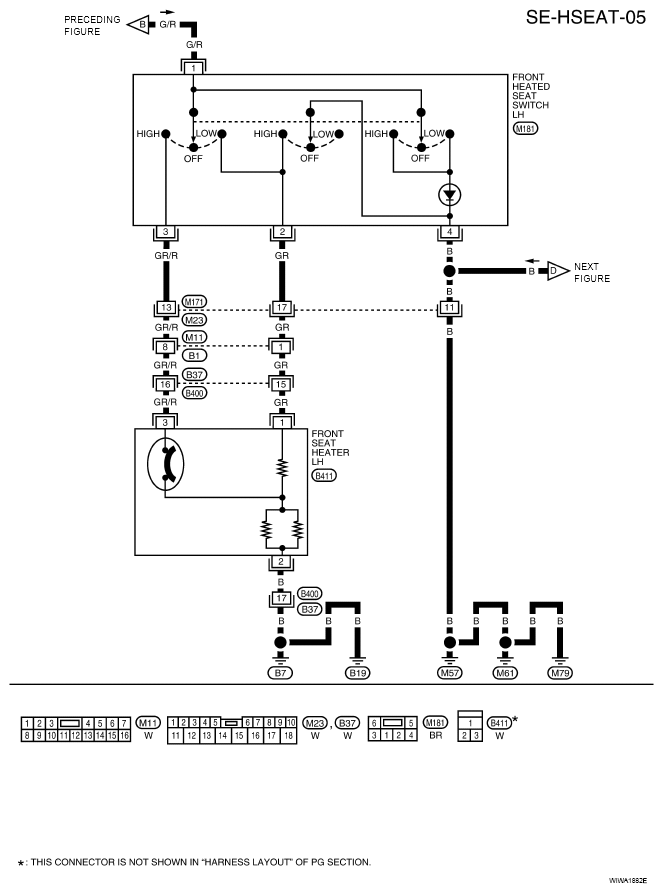

Fig 2: Wiring Diagram - SE-HSEAT-05

Courtesy of NISSAN MOTOR CO., U.S.A.

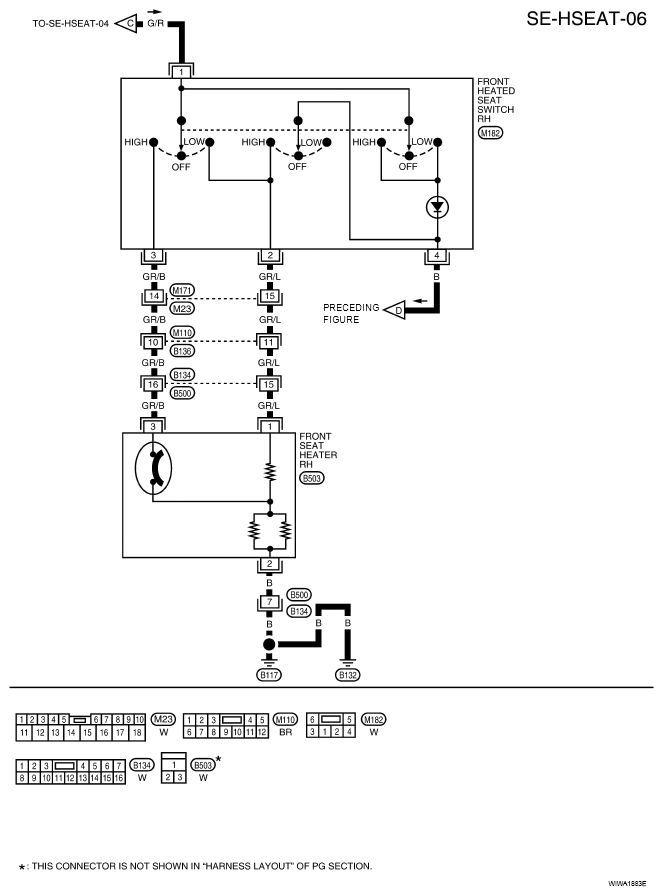

Fig 3: Wiring Diagram - SE-HSEAT-06

Courtesy of NISSAN MOTOR CO., U.S.A.

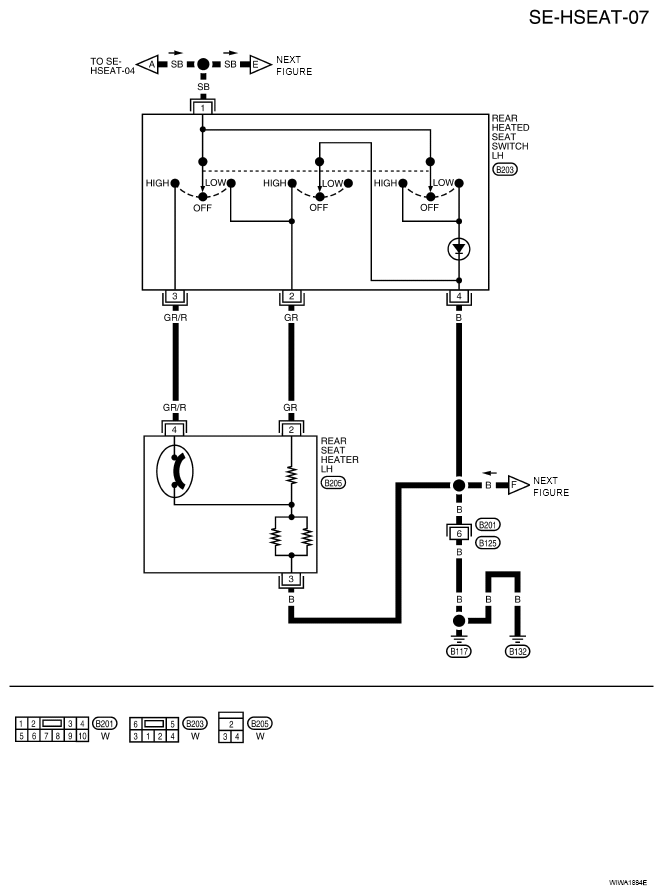

Fig 4: Wiring Diagram - SE-HSEAT-07

Courtesy of NISSAN MOTOR CO., U.S.A.

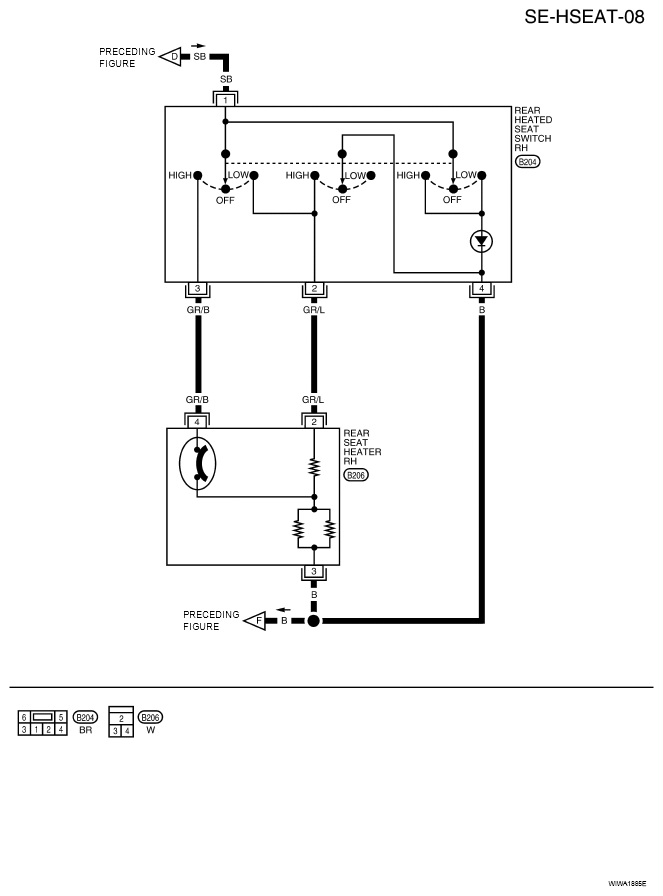

Fig 5: Wiring Diagram - SE-HSEAT-08

Courtesy of NISSAN MOTOR CO., U.S.A.
