Wiring Diagram - TAIL/L -

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

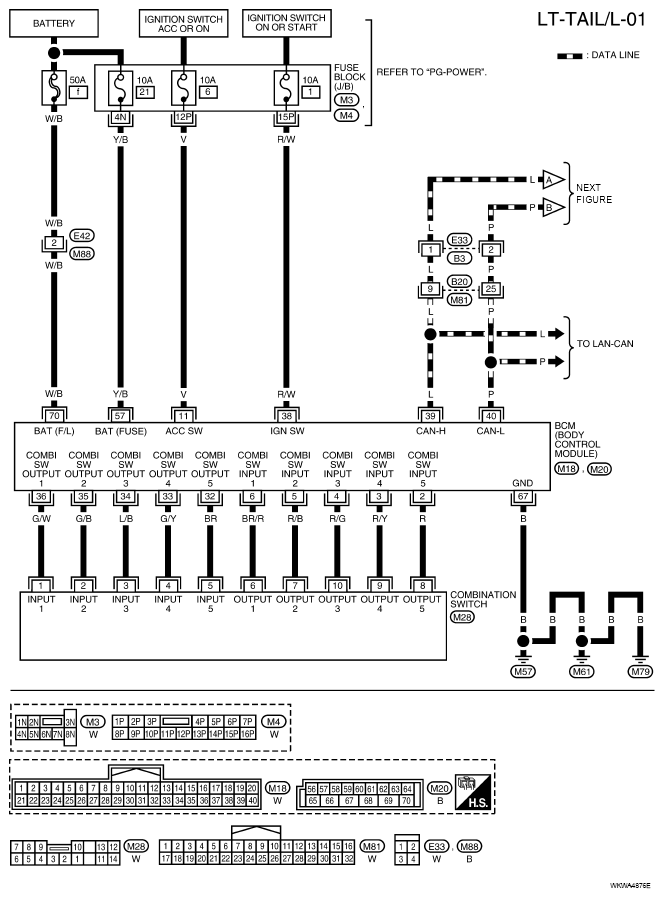

Fig 1: Wiring Diagram - LT-TAIL/L-01
G04917907

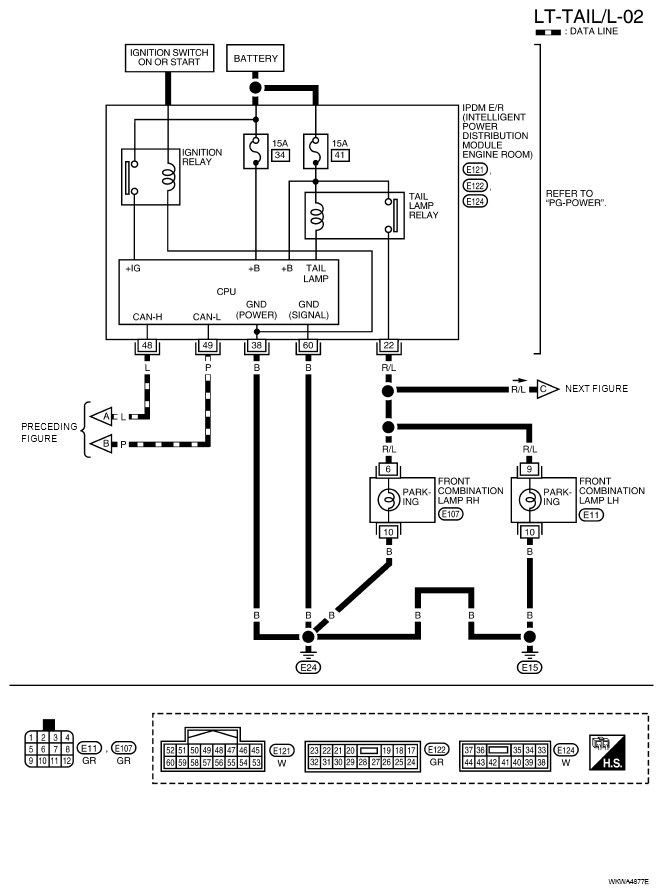

Fig 2: Wiring Diagram - LT-TAIL/L-02
G04917908

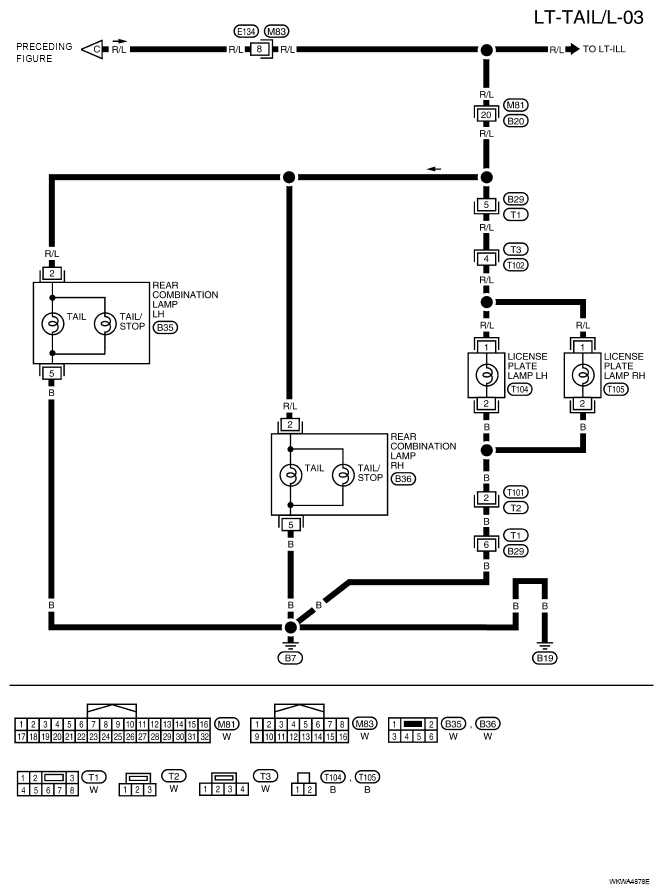

Fig 3: Wiring Diagram - LT-TAIL/L-03
G04917909
