Wiring Diagram - ILL -

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

Fig 1: Wiring Diagram - LT-ILL-01

Fig 2: Wiring Diagram - LT-ILL-02

Fig 3: Wiring Diagram - LT-ILL-03

Fig 4: Wiring Diagram - LT-ILL-04

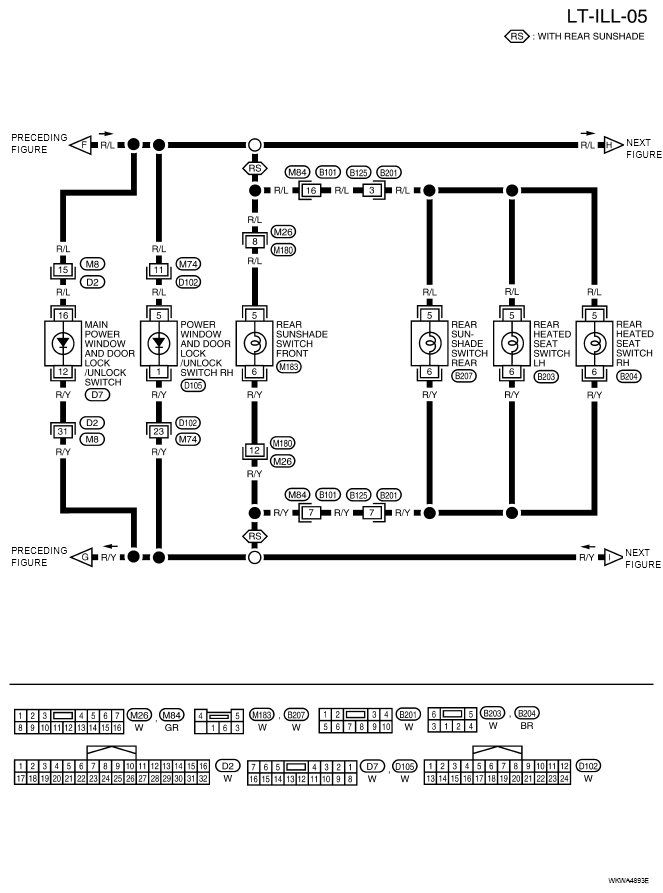

Fig 5: Wiring Diagram - LT-ILL-05

Fig 6: Wiring Diagram - LT-ILL-06
