Section 908 (Lighting System)
>>
Illumination
>>
Component Parts and Harness Connector Location
Component Parts and Harness Connector Location
WARNING:
This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

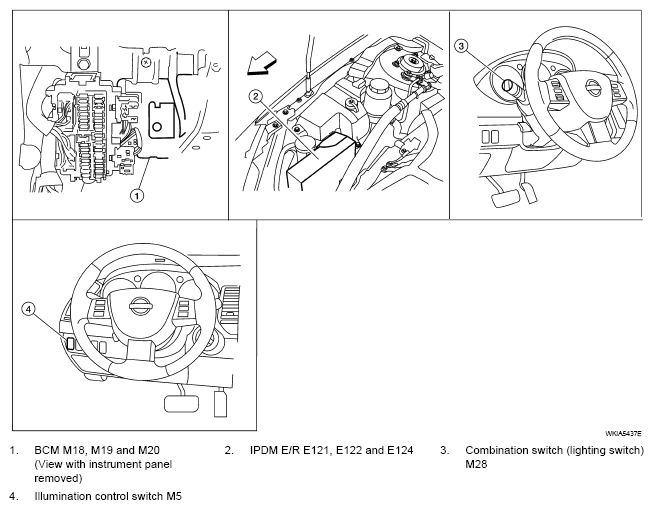

Fig 1: Identifying Illumination Component Parts And Harness Connector Location
