Wiring Diagram - AUTO/L -

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

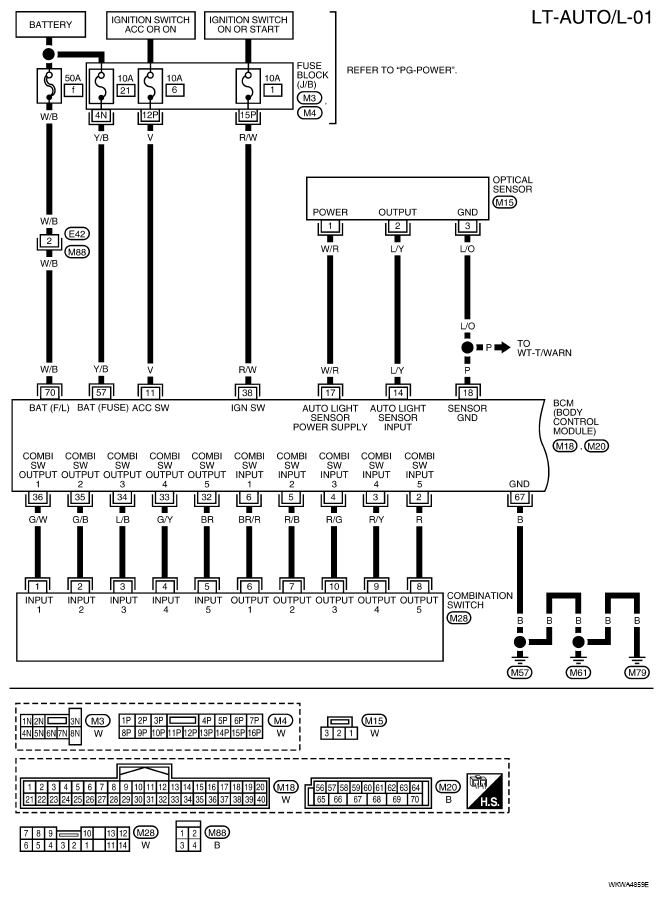

Fig 1: Wiring Diagram - LT-AUTO/L-01

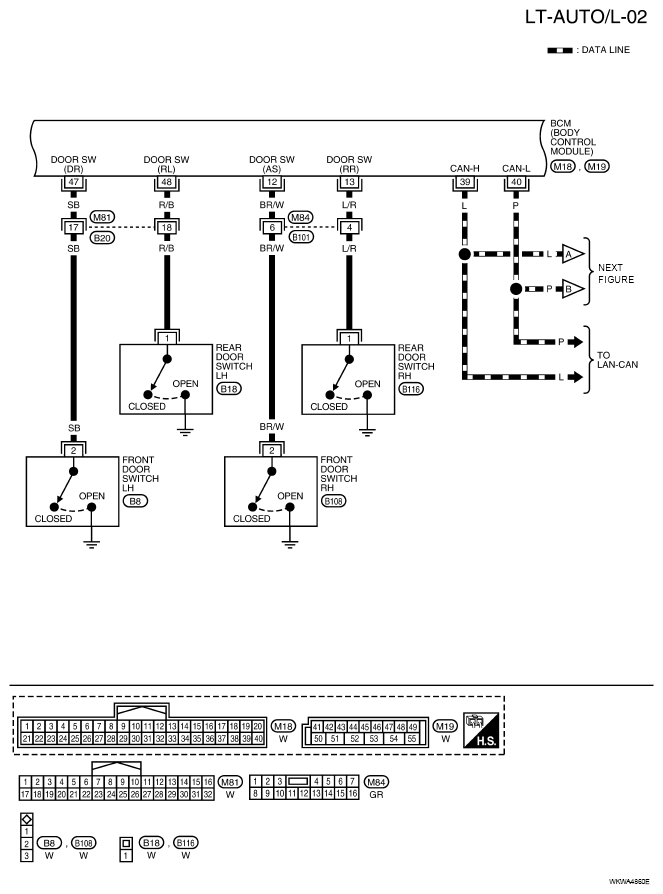

Fig 2: Wiring Diagram - LT-AUTO/L-02

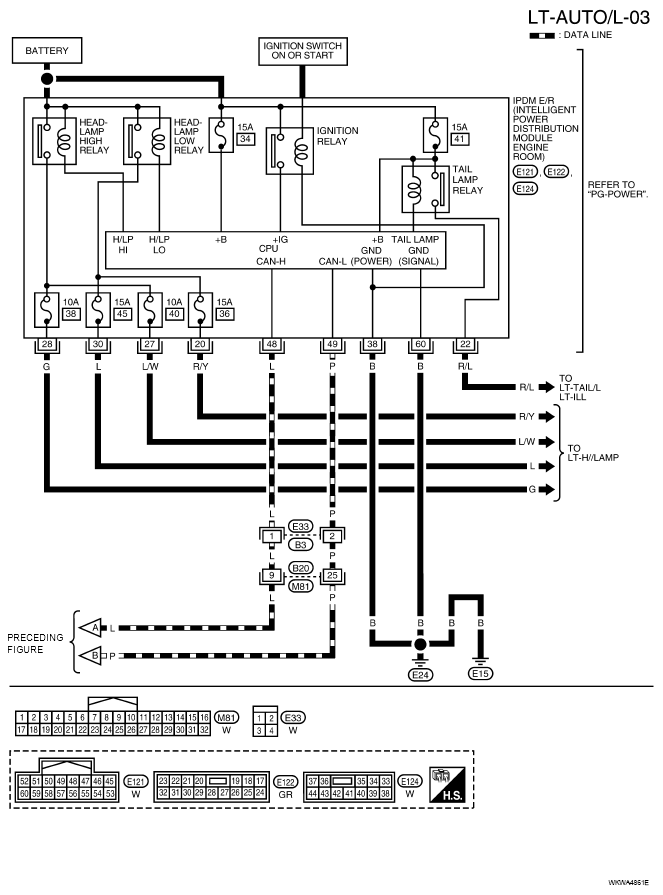

Fig 3: Wiring Diagram - LT-AUTO/L-03
