Removal and Installation: Removal

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Read "General Precautions" before working on the fuel system.

Refer to "GENERAL PRECAUTIONS ".

  1. Disconnect the battery negative terminal.
  2. Check the fuel level with the vehicle on a level surface. If the fuel gauge indicates more than the level as shown (7/8 full), drain the fuel from the fuel tank until the fuel gauge indicates a level at or below as shown (7/8 full).
    Fig 1: Checking Fuel Level On Fuel Gauge
    G04888080Courtesy of NISSAN MOTOR CO., U.S.A.
    • In case the fuel pump does not operate, use the following procedure.
    1. Insert fuel tubing of less than 25mm (0.98in) diameter into the fuel filler tube through the fuel filler opening to drain fuel from the fuel filler tube.
    2. Disconnect the fuel filler hose from the fuel filler tube.
    3. Insert fuel tubing into the fuel tank through the fuel filler hose to drain fuel from the fuel tank.
      • As a guide, the fuel level reaches or is less than the level on the fuel gauge as shown, when approximately 10 (2 5/8 US gal, 2 1/4 Imp gal) of fuel is drained from a full fuel tank.
  3. Open the fuel door and unscrew the fuel filler cap to release the pressure inside the fuel tank.
  4. Release the fuel pressure from the fuel lines. Refer to "FUEL PRESSURE RELEASE ".
  5. Disconnect the battery negative terminal.
  6. Remove rear seat bottom. Refer to "REMOVAL AND INSTALLATION ".
  7. Reposition the rear floor carpet out of the way to remove the fuel pump inspection hole cover.
  8. Turn the four retainers 90° in a clockwise direction and remove the fuel pump inspection hole cover.
    Fig 2: Identifying Directional Marks
    G04888070Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Disconnect the fuel level sensor unit, fuel filter, and fuel pump assembly electrical connector; and the fuel feed hose from the fuel level sensor unit, fuel filter, and fuel pump assembly.
    Fig 3: Identifying Fuel Level Sensor Unit
    G04888071Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Disconnect the quick connectors as follows:
      Fig 4: Disconnecting Quick Connector
      G04875524Courtesy of NISSAN MOTOR CO., U.S.A.
      • Hold the sides of the connector, push in tubs and pull out the tube.
      • If the connector and the tube are stuck together, push and pull several times until they start to move. Then disconnect them by pulling.
      CAUTION:
      • The tube can be removed when the tabs are completely depressed. Do not twist it more than necessary.
      • Do not use any tools to remove the quick connector.
      • Keep the resin tube away from heat. Be especially careful when welding near the tube.
      • Prevent acid liquid such as battery electrolyte, from getting on the resin tube.
      • Do not bend or twist the tube during installation and removal.
      • Only when the tube is replaced, remove the remaining retainer on the tube or fuel level sensor, fuel filter, and fuel pump assembly.
      • When the tube or fuel level sensor, fuel filter, and fuel pump assembly is replaced, also replace the retainer with a new one (green colored retainer).
      • To keep the connecting portion clean and to avoid damage and foreign materials, cover them completely with plastic bags or something similar.
      Fig 5: Applying Plastic Bags To Cover Quick Connector
      G04875526Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove the center exhaust tube, with mufflers. Refer to "REMOVAL AND INSTALLATION ".
  11. Disconnect the three parking brake cable mounting brackets on each cable and position the cables out of the way. Refer to "COMPONENTS ".
  12. Remove the fuel tank protector.
  13. Disconnect the fuel filler hose, recirculation hose and EVAP canister hose at the fuel tank as shown.

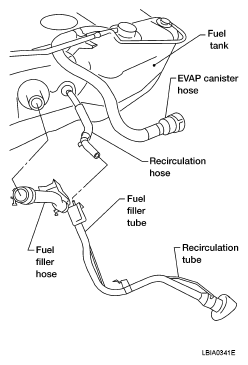

    Fig 6: Identifying Fuel Filler Hose
    G04905921Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Disconnect the fuel tank mounting straps while supporting the fuel tank.
  15. Remove the fuel tank.
  16. If replacing the fuel tank, remove the fuel level sensor, fuel filter and fuel pump assembly to transfer to the new fuel tank.
