Wiring Diagram - TRNSCV -

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

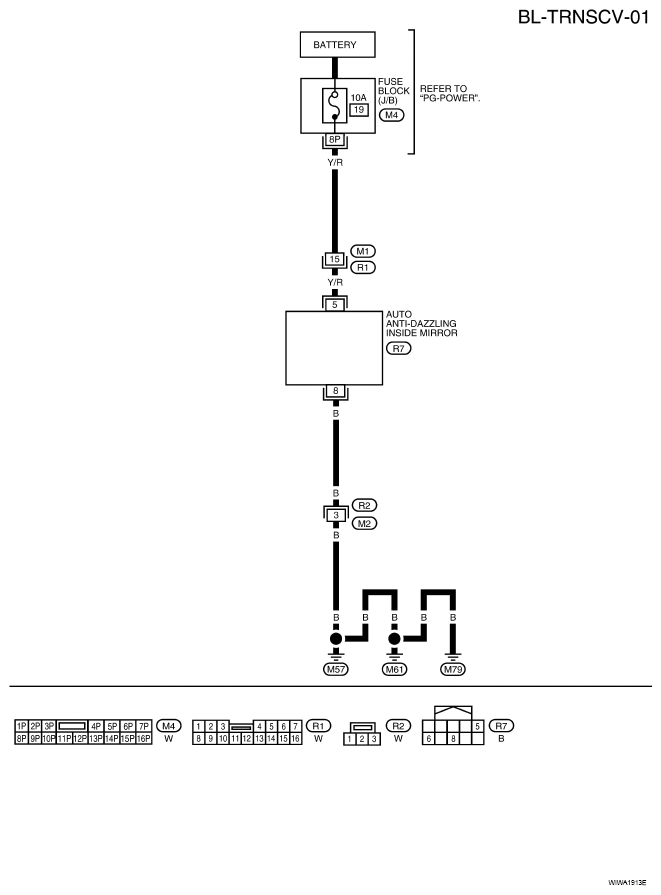

Fig 1: Wiring Diagram - BL-TRNSCV-01
G04916970Courtesy of NISSAN MOTOR CO., U.S.A.
