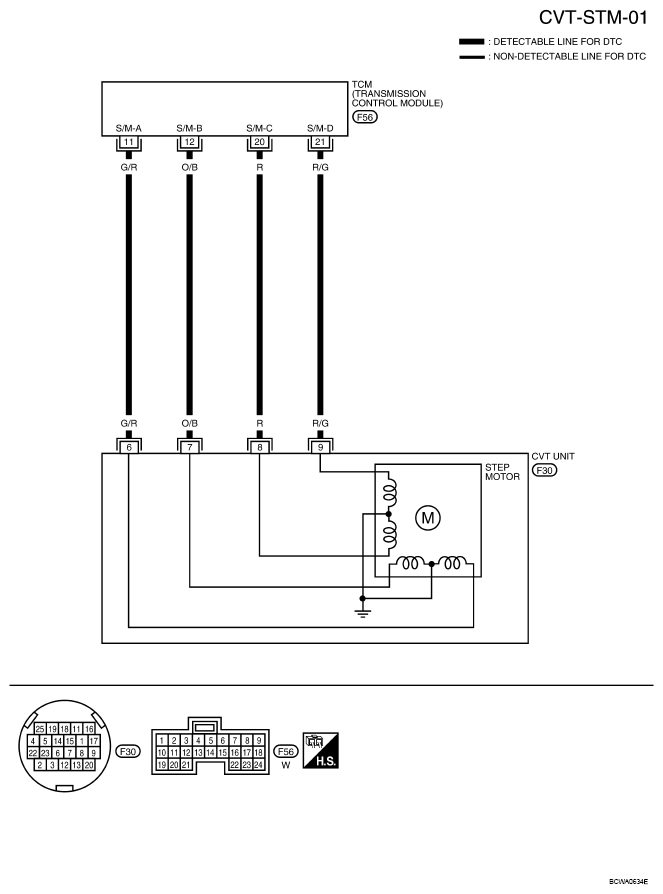

Wiring Diagram - CVT - STM
WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
TCM terminals data are reference values, measured between each terminal and ground.
TCM TERMINALS AND DISPLAY VALUE
| Terminal | Wire color | Item | Condition | Data (Approx.) |
|---|---|---|---|---|
| 11 | G/R | Step motor A | Within 2 seconds after ignition switch ON, the time measurement by using the pulse width measurement function (Hi level) of CONSULT-II.
CAUTION:
Connect the diagnosis data link cable to the vehicle diagnosis connector. A circuit tester cannot be used to test this item. |
30.0 msec |
| 12 | O/B | Step motor B | 10.0 msec | |
| 20 | R | Step motor C | 30.0 msec | |
| 21 | R/G | Step motor D | 10.0 msec |
