Wiring Diagram - CVT - POWER

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

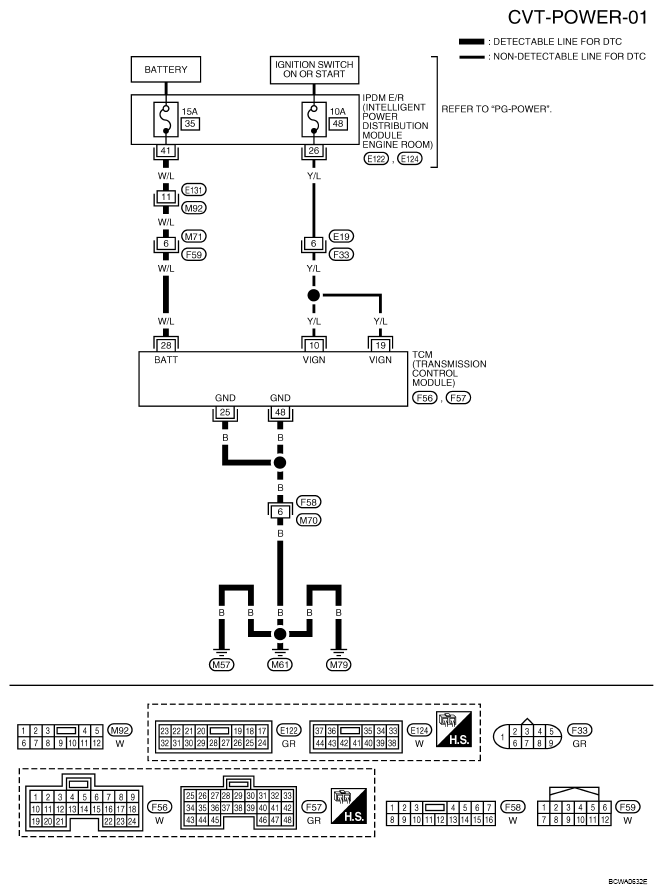

Fig 1: Wiring Diagram - CVT-POWER-01

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminals data are reference values, measured between each terminal and ground.

TCM TERMINALS DATA REFERENCE VALUES

Terminal	Wire color	Item	Condition		Data (Approx.)
10	Y/L	Power supply	Courtesy of NISSAN MOTOR CO., U.S.A.	-	Battery voltage
10	Y/L	Power supply	Courtesy of NISSAN MOTOR CO., U.S.A.	-	0 V
19	Y/L	Power supply	Courtesy of NISSAN MOTOR CO., U.S.A.	-	Battery voltage
19	Y/L	Power supply	Courtesy of NISSAN MOTOR CO., U.S.A.	-	0 V
25	B	Ground	Always		0 V
28	W/L	Power supply (memory back-up)	Always		Battery voltage
48	B	Ground	Always		0 V
