Wiring Diagram - CVT -- LPSV

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

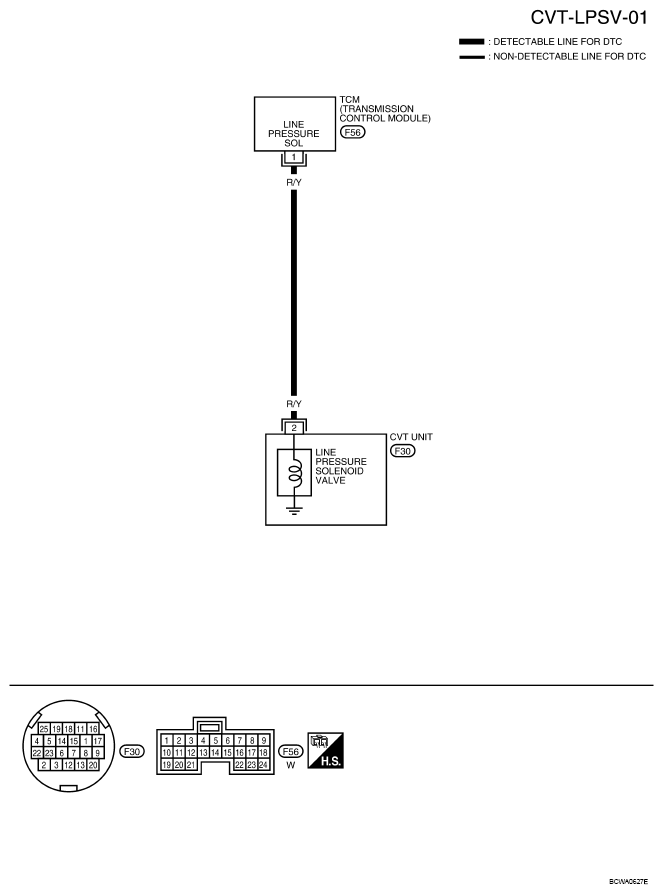

Fig 1: Wiring Diagram - CVT-LPSV-01

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminal data are reference values, measured between each terminal and ground.

TCM TERMINAL DATA REFERENCE VALUES

Terminal	Wire color	Item	Condition		Data (Approx.)
1	R/Y	Pressure control solenoid valve A (Line pressure solenoid valve)	Courtesy of NISSAN MOTOR CO., U.S.A.	Release your foot from the accelerator pedal.	5.0 - 7.0 V
1	R/Y		Courtesy of NISSAN MOTOR CO., U.S.A.	Press the accelerator pedal all the way down.	1.0 - 3.0 V
