Wiring Diagram - CVT - FTS

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

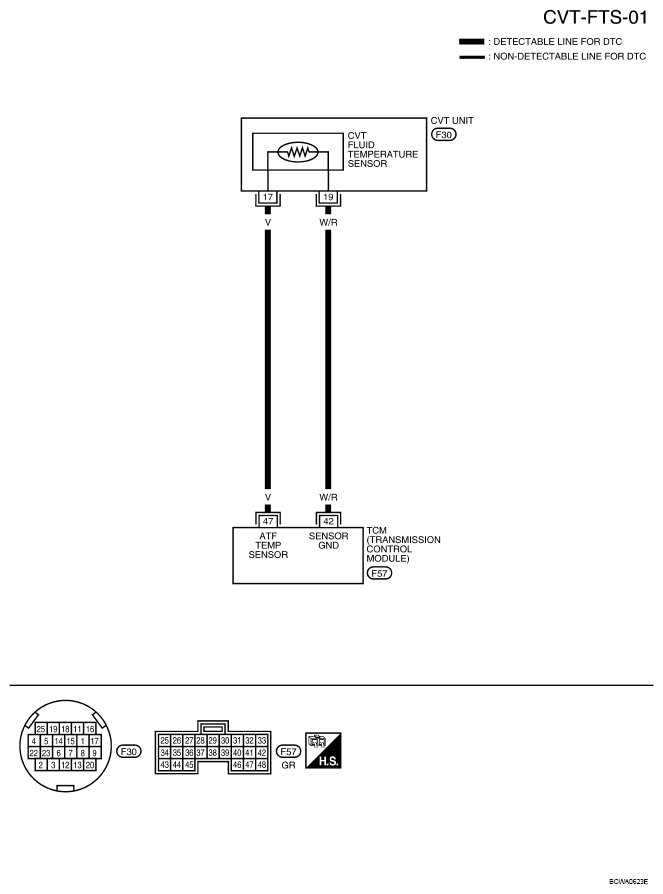

Fig 1: Wiring Diagram - CVT-FTS-01

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminal data are reference values, measured between each terminal and ground.

TCM TERMINAL DATA REFERENCE VALUES

Terminal	Wire color	Item	Condition		Data (Approx.)
42	W/R	Sensor ground	Always		0 V
47	V	CVT fluid temperature sensor	Courtesy of NISSAN MOTOR CO., U.S.A.	When CVT fluid temperature is 20°C (68°F).	2.0 V
47	V	CVT fluid temperature sensor	Courtesy of NISSAN MOTOR CO., U.S.A.	When CVT fluid temperature is 80°C (176°F).	1.0 V
