Wiring Diagram - CVT - PNP/SW

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

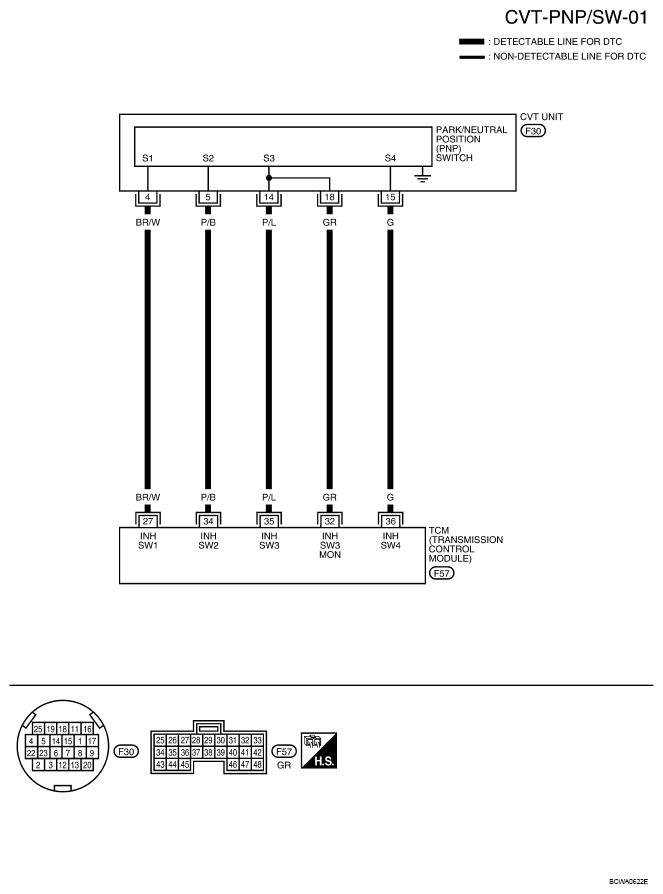

Fig 1: Wiring Diagram - CVT-PNP/SW-01

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminal data are reference values, measured between each terminal and ground.

VOLTAGE REFERENCE CHART

Terminal	Wire color	Item	Condition		Data (Approx.)
27	BR/W	PNP switch 1	Courtesy of NISSAN MOTOR CO., U.S.A.	Selector lever in "R", "N" and "D" positions.	0 V
27	BR/W	PNP switch 1		Selector lever in "P" position.	Battery voltage
32	GR	PNP switch 3 (monitor)		Selector lever in "D" position.	0 V
32	GR	PNP switch 3 (monitor)		Selector lever in "P", "R" and "N" positions.	8.0 V - Battery voltage
34	P/B	PNP switch 2		Selector lever in "N" and "D" positions.	0 V
34	P/B	PNP switch 2		Selector lever in "P" and "R" positions.	10.0 V - Battery voltage
35	P/L	PNP switch 3		Selector lever in "D" position.	0 V
35	P/L	PNP switch 3		Selector lever in "P", "R" and "N" positions.	8.0 V - Battery voltage
36	G	PNP switch 4		Selector lever in "R" and "D" positions.	0 V
36	G	PNP switch 4		Selector lever in "P" and "N" positions.	10.0 V - Battery voltage
