Removal and Installation: Removal: Notes

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the starter insulator.

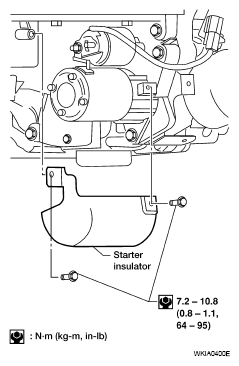

    Fig 1: Starter Insulator With Torque Specifications
    G04917772Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the harness bracket and harness protector from the starter engine room harness.
  4. Disconnect the starter harness connectors.
  5. Remove the two starter bolts, using power tools.

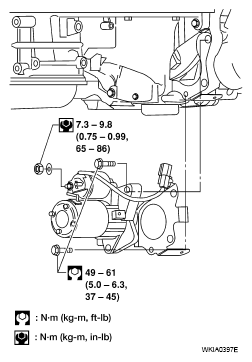

    Fig 2: Starter Bolts With Torque Specifications
    G04917773Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove the starter.
