Valve Lifter
WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Unit: mm (in)
VALVE LIFTER SERVICE SPECIFICATION
| Valve lifter outer diameter | 33.977 - 33.987 (1.3377 - 1.3381) |
|---|---|
| Lifter lifter bore diameter | 34.000 - 34.016 (1.3386 - 1.3392) |
| Clearance between lifter and lifter guide | 0.013 - 0.039 (0.0005 - 0.0015) |

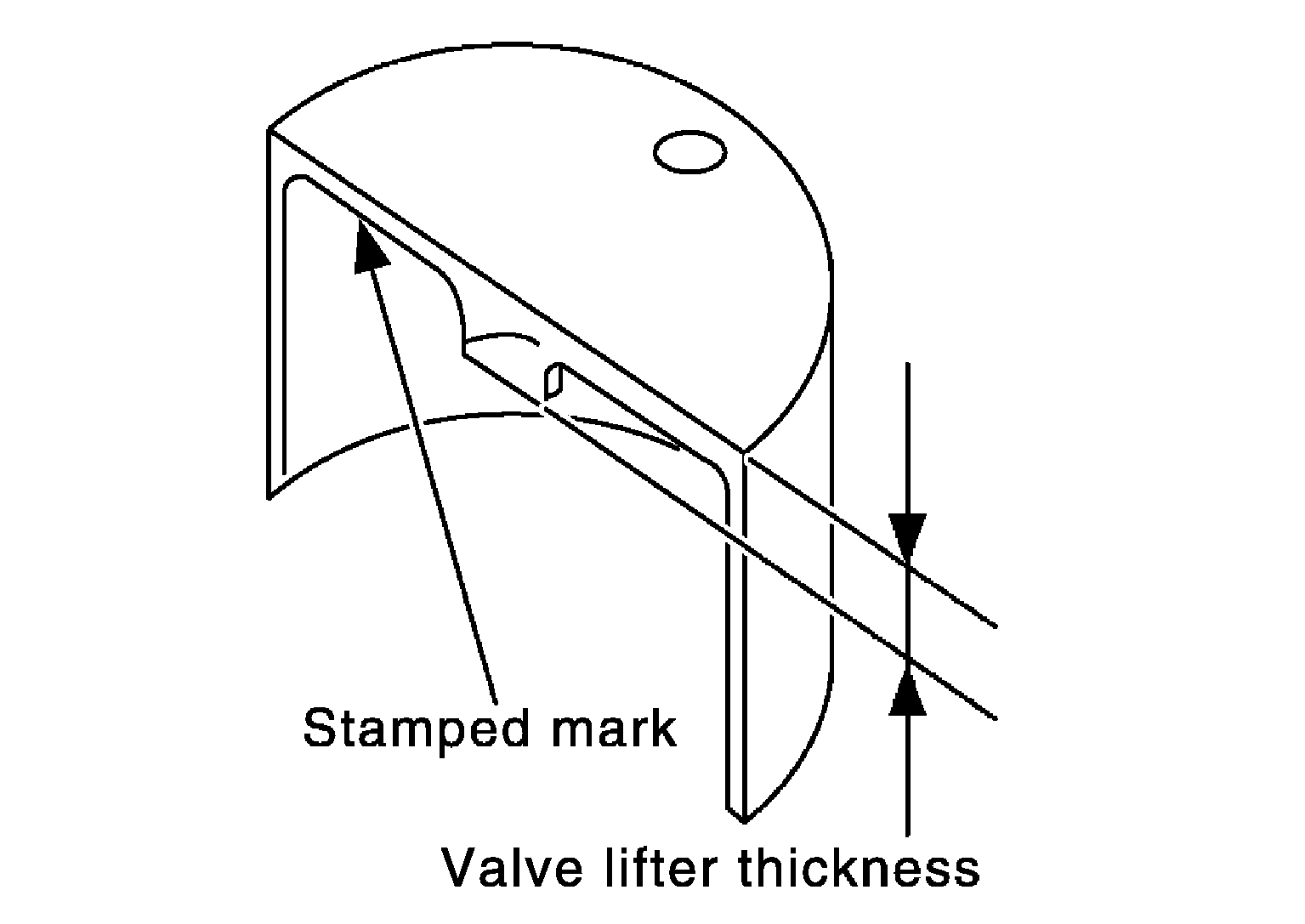

VALVE LIFTER THICKNESS SPECIFICATION
| Identification Mark | Thickness mm (in) |
|---|---|
| 788C | 7.88 (0.3102) |
| 790C | 7.90 (0.3110) |
| 792C | 7.92 (0.3118) |
| 794C | 7.94 (0.3126) |
| 796C | 7.96 (0.3134) |
| 798C | 7.98 (0.3142) |
| 800C | 8.00 (0.3150) |
| 802C | 8.02 (03.157) |
| 804C | 8.04 (0.3165) |
| 806C | 8.06 (0.3173) |
| 808C | 8.08 (0.3181) |
| 810C | 8.10 (0.3189) |
| 812C | 8.12 (0.3197) |
| 814C | 8.14 (0.3205) |
| 816C | 8.16 (0.3213) |
| 818C | 8.18 (0.3220) |
| 820C | 8.20 (0.3228) |
| 822C | 8.22 (0.3236) |
| 824C | 8.24 (0.3244) |
| 826C | 8.26 (0.3252) |
| 828C | 8.28 (0.3260) |
| 830C | 8.30 (0.3268) |
| 832C | 8.32 (0.3276) |
| 834C | 8.34 (0.3283) |
| 836C | 8.36 (0.3291) |
