Exhaust Manifold And Three Way Catalyst: Installation

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Install the exhaust manifold nuts in the order as shown.
CAUTION:
- When using the heated oxygen sensor wrench, tighten to the middle of specified torque range, because the length of the Tool may increase the actual tightness. Do not tighten to the maximum specified torque range.
  Tool numbers

  : KV10114400 (J-38365)

  : KV991J0050(J-44626)
- Before installing a heated oxygen sensor or air fuel ratio (A/F) sensor, clean the exhaust manifold threads using the oxygen sensor thread cleaner tool, and apply anti-seize lubricant.
  Tool numbers

  : J-43897-18

  : J-43897-12

  Fig 1: Identifying Exhaust Manifold Nuts (RH Bank) With Tightening Sequence
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Do not over-tighten the air fuel ratio (A/F) sensor or heated oxygen sensors. Doing so may cause damage.
Fig 2: Identifying Exhaust Manifold Nuts (LH Bank) With Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
- Install the RH and LH three way catalyst support bolts in the order as shown.
  Three way catalyst support bolts: 22 N.m (2.2 kg-m, 16 ft-lb)

  Fig 3: Identifying Catalyst Support Bolts (RH And LH) With Tightening Sequence
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install the exhaust manifold heat shield bolts.
  Exhaust manifold heat shield bolts: 5.8 N.m (0.59 kg-m, 51 in-lb)
- Install the three way catalyst heat shield bolts.
  Three way catalyst heat shield bolts: 8.25 N.m (0.84 kg-m, 73 in-lb)

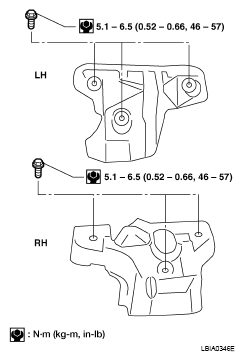

  Fig 4: Exhaust Manifold Heat Shield Bolts With Torque Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.
