Accessory Power Supply - Ignition SW. In Acc Or On

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

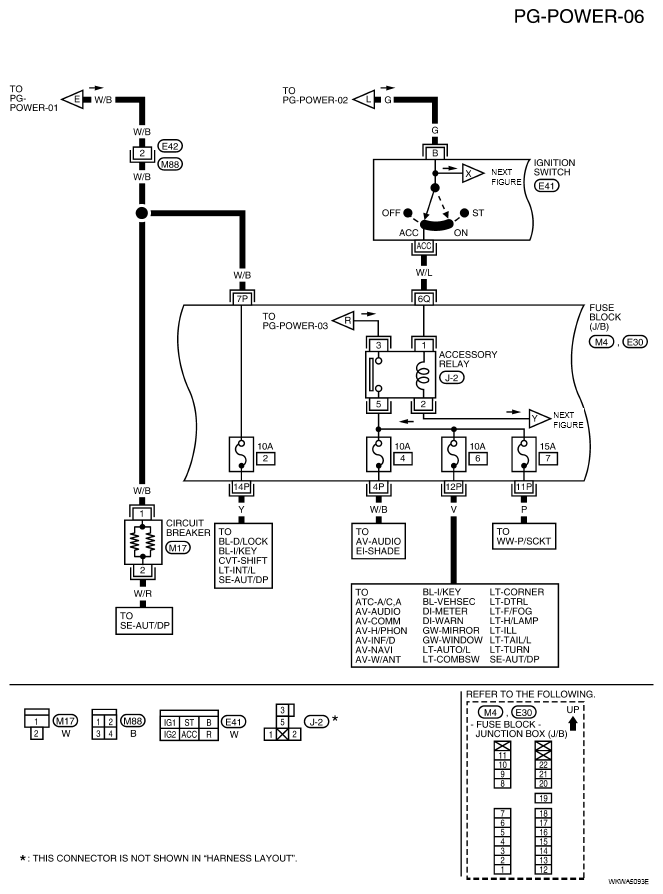

Fig 1: Wiring Diagram - PG-POWER-06
G04918595Courtesy of NISSAN MOTOR CO., U.S.A.
