Inspection In Auto Active Test Mode: Notes
WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

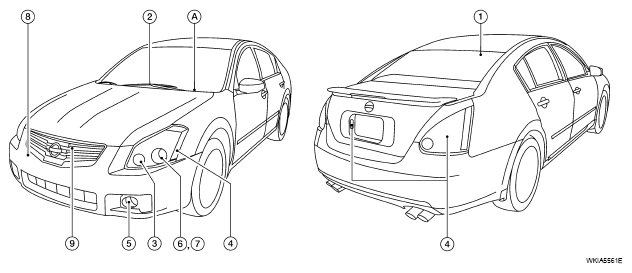

When auto active test mode is actuated, the following nine steps are repeated three times.
(A): Oil pressure warning lamp is blinking when the auto active test is operating.
AUTO ACTIVE TEST MODE
| Item Number | Test Item | Operation Time/Frequency |
|---|---|---|
| 1 | Rear window defogger | 10 seconds |
| 2 | Front wipers | LOW 5 seconds then HIGH 5 seconds |
| 3 | Cornering lamps | 10 seconds |
| 4 | Tail, license plate, and parking lamps | 10 seconds |
| 5 | Front fog lamps | 10 seconds |
| 6 | Headlamps (low) | 10 seconds |
| 7 | Headlamps (high) | ON-OFF 5 times (Turns ON-OFF the solenoid to switch High/Low. In this case, the bulb does not illuminate.) |
| 8 | A/C compressor (magnet clutch) | ON-OFF 5 times |
| 9 | Cooling fan | LOW 2 seconds → MID 2 seconds → HIGH 2 seconds → MID 2 seconds → LOW 2 seconds |
