Room Lamp Harness
WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

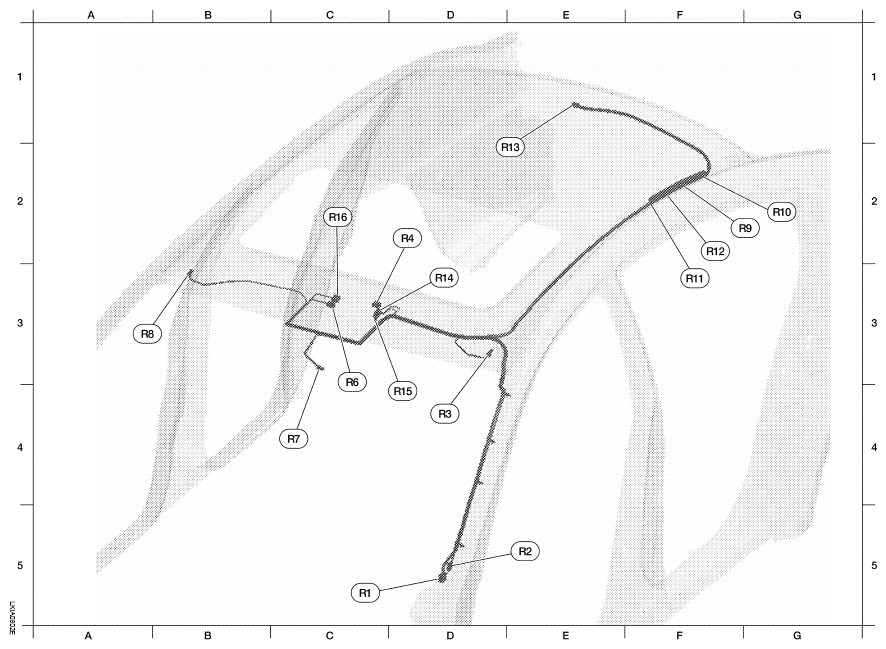

ROOM LAMP HARNESS REFERENCE CHART
| C5 | R1 | W/16 | : To M1 | ||||
| E5 | R2 | W/3 | : To M2 | ||||
| D4 | R3 | W/2 | : Vanity mirror lamp LH | ||||
| D2 | R4 | W/10 | : Sunroof motor | ||||
| C3 | R6 | GR/6 | : Sunroof switch | ||||
| C4 | R7 | B/10 | : Auto anti-dazzling inside mirror | ||||
| A3 | R8 | W/2 | : Vanity mirror lamp RH | ||||
| F2 | R9 | W/2 | : Diode-1 | ||||
| G2 | R10 | W/2 | : Diode-2 | ||||
| F3 | R11 | W/2 | : Diode-3 | ||||
| F2 | R12 | W/2 | : Diode-4 | ||||
| D1 | R13 | W/6 | : Personal lamp | ||||
| D3 | R14 | W/8 | : Interior room lamp | ||||
| D3 | R15 | W/4 | : Microphone | ||||
| C2 | R16 | W/4 | : Bluetooth on indicator |
