Main Harness
WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

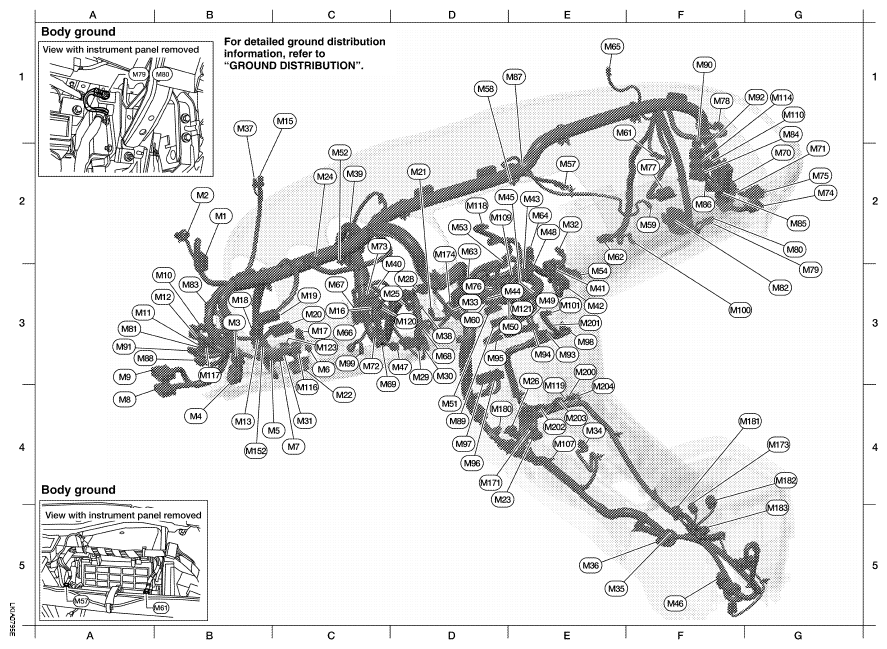

MAIN HARNESS REFERENCE CHART
| B2 | M1 | W/16 | : To R1 | E3 | M44 | W/6 | : Audio unit (with NAVI) |
| B2 | M2 | W/3 | : To R2 | E2 | M45 | W/16 | : Audio unit (with NAVI) |
| B3 | M3 | W/8 | : Fuse block (J/B) | F5 | M46 | B/6 | : Yaw rate/side/decel G sensor |
| B4 | M4 | W/16 | : Fuse block (J/B) | D3 | M47 | W/8 | : Steering angle sensor |
| B4 | M5 | W/3 | : Illumination control switch | E2 | M48 | W/2 | : To M501 |
| C3 | M6 | GR/6 | : TCS OFF switch (without VDC) | E3 | M49 | GR/20 | : Unified meter and A/C amp. |
| C3 | M6 | GR/6 | : VDC OFF switch (with VDC) | E3 | M50 | GR/16 | : Unified meter and A/C amp. |
| C4 | M7 | BR/16 | : Door mirror remote control switch (with automatic drive positioner) | D4 | M51 | W/20 | : Audio unit (without NAVI) |
| C4 | M7 | W/16 | : Door mirror remote control switch (without automatic drive positioner) | C2 | M52 | W/40 | : Intelligent key unit |
| A4 | M8 | W/32 | : To D2 | D2 | M53 | W/12 | : Audio unit (without BOSE) |
| A3 | M9 | W/16 | : To D1 | D2 | M53 | W/16 | : Audio unit (with BOSE) |
| B3 | M10 | Y/4 | : To E29 | E3 | M54 | W/2 | : Trunk lid opener cancel switch |
| A3 | M11 | W/16 | : To B1 | E2 | M57 | - | : Body ground |
| B3 | M12 | W/8 | : To B2 | D1 | M58 | W/3 | : Intake door motor |
| D4 | M13 | L/4 | : Heated steering relay | F2 | M59 | BR/2 | : Glove box lamp |
| C1 | M15 | W/3 | : Optical sensor | D3 | M60 | W/12 | : Audio unit (without NAVI) |
| C3 | M16 | GR/6 | : ADP steering switch | E1 | M61 | - | : Body ground |
| C3 | M17 | W/2 | : Circuit breaker | E2 | M62 | W/2 | : Blower motor |
| B3 | M18 | W/40 | : BCM (body control module) | D2 | M63 | W/3 | : Audio unit |
| C3 | M19 | W/15 | : BCM (body control module) | E2 | M64 | W/4 | : Fan control amp. |
| C3 | M20 | B/15 | : BCM (body control module) | E1 | M65 | B/2 | : Sunload sensor |
| D2 | M21 | W/4 | : NATS antenna amp. | C3 | M66 | W/2 | : Telescopic motor |
| C3 | M22 | W/16 | : Data link connector | C3 | M67 | W/3 | : Telescopic motor |
| D5 | M23 | W/18 | : To M171 | D3 | M68 | W/2 | : Tilt motor |
| C2 | M24 | W/24 | : Combination meter | C3 | M69 | W/3 | : Tilt motor |
| C3 | M25 | W/2 | : Ignition keyhole illumination | G2 | M70 | W/16 | : To F58 |
| E3 | M26 | W/16 | : To M180 | G2 | M71 | W/16 | : To F59 |
| D3 | M28 | W/16 | : Combination switch | C3 | M72 | W/4 | : Steering lock solenoid |
| D3 | M29 | Y/6 | : Spiral cable | C2 | M73 | GR/6 | : Key switch and ignition knob switch |
| D3 | M30 | GR/8 | : Spiral cable | G2 | M74 | W/24 | : To D102 |
| C4 | M31 | GR/10 | : Shift lock control unit | F2 | M75 | W/8 | : To D101 |
| E2 | M32 | W/2 | : In-vehicle sensor | D3 | M76 | GR/2 | : Instrument panel antenna |
| D3 | M33 | W/2 | : Intake sensor | F2 | M77 | Y/4 | : Front passenger air bag module |
| E4 | M34 | W/16 | : CVT device | F1 | M78 | B/4 | : Remote keyless entry receiver (for intelligent key) |
| E5 | M35 | Y/28 | : Air bag diagnosis sensor unit | G3 | M79 | - | : Body ground |
| E5 | M36 | B/1 | : Parking brake switch | G2 | M80 | - | : Body ground |
| B1 | M37 | BR/2 | : Security indicator lamp | A3 | M81 | W/32 | : To B20 |
| D3 | M38 | W/2 | : Combination switch (heated steering) | G3 | M82 | B/40 | : ECM |
| C2 | M39 | W/3 | : Air mix door motor (driver) | B3 | M83 | W/16 | : To E34 |
| D3 | M40 | W/4 | : Mode door motor | G1 | M84 | GR/16 | : To B101 |
| E3 | M41 | W/32 | : Automatic drive positioner control unit | G2 | M85 | W/24 | : To B102 |
| E3 | M42 | W/16 | : Automatic drive positioner control unit | F2 | M86 | W/16 | : To B103 |
| E2 | M43 | W/10 | : Audio unit (with NAVI) | E1 | M87 | W/3 | : Air mix door motor (passenger) |
| B3 | M88 | B/4 | : To E42 | D2 | M118 | W/12 | : A/C display |
| D4 | M89 | W/24 | : Unified meter and A/C amp. | E3 | M119 | W/16 | : To M200 |
| F1 | M90 | W/16 | : To E25 | D3 | M120 | W/4 | : Remote keyless entry receiver (for tire pressure warning) |
| A3 | M91 | W/4 | : To E26 | E3 | M121 | GR/2 | : NAVI control unit |
| G1 | M92 | W/12 | : To E131 | C3 | M123 | W/2 | : Tire pressure warning check connector |
| E3 | M93 | W/24 | : Display unit (with NAVI) | B4 | M152 | B/2 | : Resistor-1 |
| E3 | M94 | W/24 | : Display control unit (with NAVI) | D4 | M171 | W/18 | : To M23 |
| D3 | M95 | W/32 | : Display control unit (with NAVI) | G4 | M173 | B/2 | : Heated steering wheel switch |
| D4 | M96 | W/40 | : NAVI control unit (with NAVI) | D2 | M174 | GR/2 | : Front console antenna |
| D4 | M97 | W/32 | : NAVI control unit (with NAVI) | D4 | M180 | W/16 | : To M26 |
| E3 | M98 | W/16 | : AV switch | F4 | M181 | W/6 | : Front heated seat switch LH |
| C3 | M99 | W/2 | : Foot lamp LH | G4 | M182 | BR/6 | : Front heated seat switch RH |
| F3 | M100 | W/2 | : Foot lamp RH | G5 | M183 | W/6 | : Rear sunshade switch front (with rear sunshade) |
| E3 | M101 | W/3 | : Front passenger air bag off indicator | Console sub-harness | |||
| E4 | M107 | BR/2 | : CVT device | E3 | M200 | W/16 | : To M119 |
| D2 | M109 | W/12 | : Audio unit | E3 | M201 | W/12 | : Front air control |
| G1 | M110 | BR/12 | : To B136 | E4 | M202 | W/4 | : Hazard switch |
| G1 | M114 | W/24 | : To B40 | E4 | M203 | W/4 | : Aux-jack |
| G3 | M116 | GR/8 | : Rear sonar system off switch | E3 | M204 | B/3 | : Front power socket |
| B3 | M117 | B/2 | : Sonar buzzer | ||||
