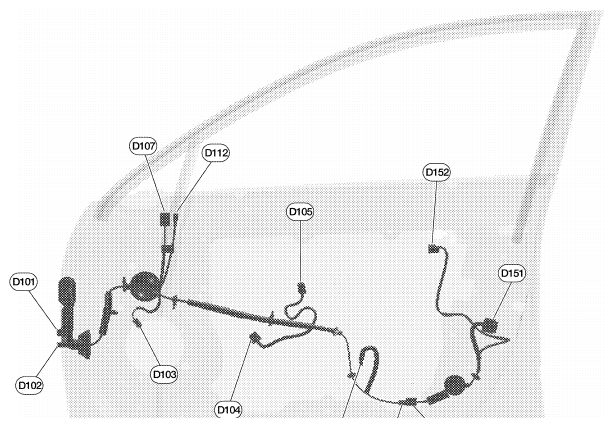

Front Door RH Harness
WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
FRONT DOOR RH HARNESS REFERENCE CHART
| D101 | W/8 | : To M75 | D107 | W/12 | : Door mirror RH (without auto dimming outside mirrors) |
| D102 | W/24 | : To M74 | D108 | W/2 | : Front step lamp RH |
| D103 | W/2 | : Front door speaker RH (without BOSE audio system) | D112 | BR/2 | : Tweeter RH |
| D103 | BR/2 | : Front door speaker RH (with BOSE audio system) | Front door RH sub-harness | ||
| D104 | W/6 | : Front power window motor RH | D150 | W/6 | : To D106 |
| D105 | W/16 | : Power window and door lock/unlock switch RH | D151 | B/6 | : Front door lock actuator RH |
| D106 | W/6 | : To D150 | D152 | B/4 | : To D160 |
| D107 | W/16 | : Door mirror RH (with auto dimming outside mirrors) | |||
