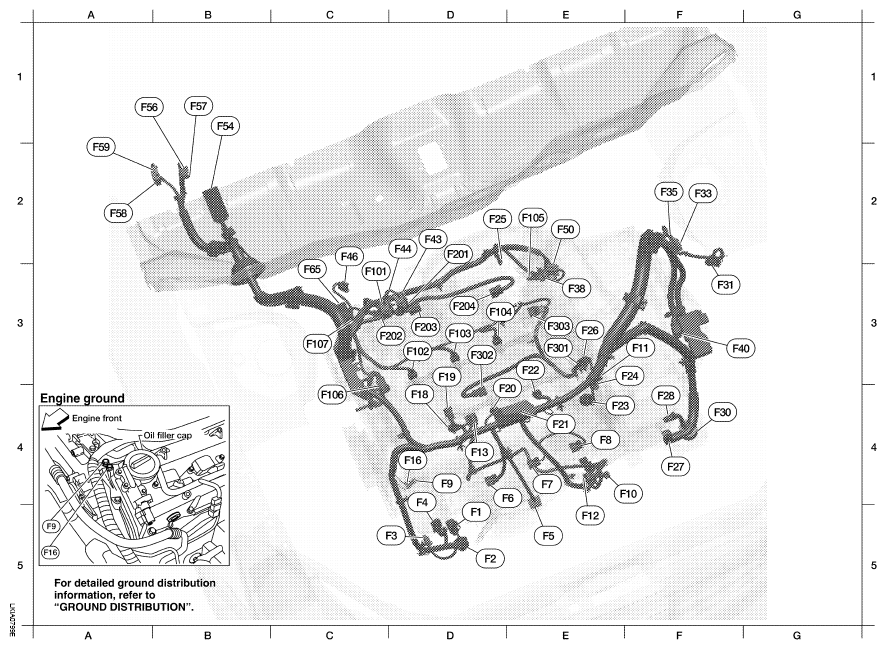

Engine Control Harness
WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE CONTROL HARNESS REFERENCE CHART
| D5 | F1 | W/2 | : Generator | A2 | F58 | W/16 | : To M70 |
| D5 | F2 | - | : Generator | A2 | F59 | W/12 | : To M71 |
| D5 | F3 | B/1 | : A/C Compressor | C3 | F65 | B/6 | : Air fuel ratio (A/F) sensor 1 (bank 1) |
| D4 | F4 | GR/2 | : Intake valve timing control solenoid valve (bank 2) | Engine control sub-harness-1 | |||
| E5 | F5 | B/6 | : Air fuel ratio (A/F) sensor 1 (bank 2) | C3 | F101 | G/8 | : To F44 |
| D4 | F6 | GR/3 | : Ignition coil No. 2 (with power transistor) | D3 | F102 | GR/2 | : Fuel injector No. 1 |
| E4 | F7 | GR/3 | : Ignition coil No. 4 (with power transistor) | D3 | F103 | GR/2 | : Fuel injector No. 3 |
| E4 | F8 | GR/3 | : Ignition coil No. 6 (with power transistor) | D3 | F104 | GR/2 | : Fuel injector No. 5 |
| D4 | F9 | - | : Engine ground | E2 | F105 | L/2 | : EVAP canister purge volume control solenoid valve |
| F4 | F10 | BR/3 | : Front electronic controlled engine mount | C4 | F106 | B/1 | : Oil pressure switch |
| F3 | F11 | B/3 | : Crankshaft position sensor (POS) | C3 | F107 | GR/2 | : Intake valve timing control solenoid valve (bank 1) |
| E5 | F12 | G/4 | : Heated oxygen sensor 2 (bank 2) | Engine control sub-harness-2 | |||
| D4 | F13 | G/4 | : Heated oxygen sensor 2 (bank 1) | D2 | F201 | G/6 | : To F43 |
| D4 | F16 | - | : Engine ground | D3 | F202 | GR/3 | : Ignition coil No. 1 (with power transistor) |
| D4 | F18 | GR/2 | : Fuel injector No. 2 | D3 | F203 | GR/3 | : Ignition coil No. 3 (with power transistor) |
| D3 | F19 | B/2 | : VIAS control solenoid valve | D3 | F204 | GR/3 | : Ignition coil No. 5 (with power transistor) |
| E4 | F20 | GR/2 | : Fuel injector No. 4 | Engine control sub-harness-3 | |||
| E4 | F21 | GR/2 | : Condenser-2 | E3 | F301 | GR/6 | : To F26 |
| E3 | F22 | GR/2 | : Fuel injector No. 6 | D3 | F302 | B/2 | : Knock sensor |
| E4 | F23 | B/3 | : Camshaft position sensor (PHASE) (bank 2) | E3 | F303 | G/3 | : Camshaft position sensor (phase) (bank 1) |
| F3 | F24 | GR/2 | : Engine coolant temperature sensor | ||||
| D2 | F25 | BR/3 | : Rear electronic controlled engine mount | ||||
| E3 | F26 | GR/6 | : To F301 | ||||
| F4 | F27 | - | : Starter motor | ||||
| F4 | F28 | GR/1 | : Starter motor | ||||
| F4 | F30 | GR/22 | : CVT unit | ||||
| G3 | F31 | B/6 | : Mass air flow sensor | ||||
| F2 | F33 | GR/9 | : To E19 | ||||
| F2 | F35 | GR/2 | : To E22 | ||||
| E3 | F38 | B/3 | : Secondary speed sensor | ||||
| F3 | F40 | - | : Fusible link box (battery) | ||||
| D2 | F43 | G/6 | : To F201 | ||||
| D2 | F44 | G/8 | : To F101 | ||||
| C2 | F46 | B/3 | : Power steering pressure sensor | ||||
| E2 | F50 | GR/6 | : Electronic throttle control actuator | ||||
| B1 | F54 | B/81 | : ECM | ||||
| A1 | F56 | W/24 | : TCM (transmission control module) | ||||
| B1 | F57 | GR/24 | : TCM (transmission control module) | ||||
