Body Harness And Tail Harness
WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

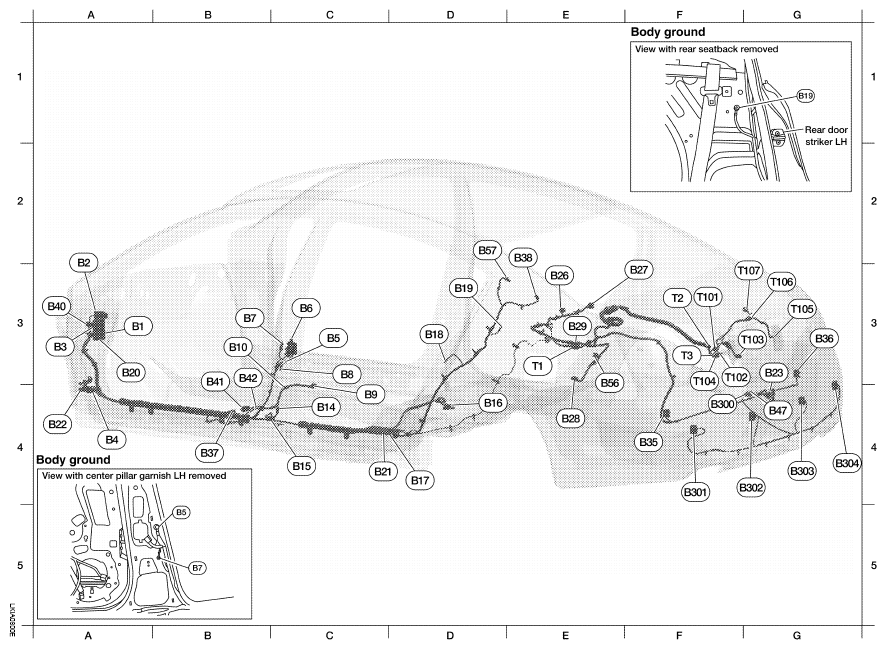

BODY HARNESS AND TAIL HARNESS REFERENCE CHART
| A3 | B1 | W/16 | : To M11 | Tail harness | |||
| A2 | B2 | W/8 | : To M12 | E3 | T1 | W/8 | : To B29 |
| A3 | B3 | W/4 | : To E33 | F3 | T2 | W/3 | : To T101 |
| A4 | B4 | BR/6 | : Rear window defogger relay | F3 | T3 | W/4 | : To T102 |
| C3 | B5 | - | : Body ground | F3 | T101 | W/3 | : To T2 |
| C3 | B6 | W/12 | : To D201 | F3 | T102 | W/4 | : To T3 |
| B3 | B7 | - | : Body ground | G3 | T103 | W/4 | : Trunk lamp switch and trunk release solenoid |
| C3 | B8 | W/3 | : Front door switch LH | F3 | T104 | B/2 | : License plate lamp LH |
| D3 | B9 | Y/12 | : Air bag diagnosis sensor unit | G3 | T105 | B/2 | : License plate lamp RH |
| B3 | B10 | Y/2 | : Front LH side air bag module | G3 | T106 | BR/2 | : Trunk opener request switch |
| C4 | B14 | Y/2 | : Front LH seat belt pre-tensioner | G3 | T107 | BR/2 | : High mounted stop lamp (with rear spoiler) |
| C4 | B15 | Y/2 | : LH side air bag (satellite) sensor | ||||
| D4 | B16 | GR/5 | : Fuel level sensor unit and fuel pump | ||||
| D4 | B17 | W/2 | : Condenser-1 | ||||
| D3 | B18 | W/1 | : Rear door switch LH | ||||
| D3 | B19 | - | : Body ground | ||||
| A3 | B20 | W/32 | : To M81 | ||||
| C4 | B21 | W/1 | : Condenser-3 | ||||
| A4 | B22 | B/5 | : Passenger select unlock relay | ||||
| E3 | B23 | GR/2 | : Rear bumper antenna | ||||
| E3 | B26 | W/2 | : Subwoofer LH (without BOSE audio system) | ||||
| E3 | B26 | W/6 | : Subwoofer LH (with BOSE audio system) | ||||
| F3 | B27 | W/8 | : To B131 | ||||
| E4 | B28 | W/4 | : Fuel lid opener actuator | ||||
| E3 | B29 | W/8 | : To T1 | ||||
| F4 | B35 | W/6 | : Rear combination lamp LH | ||||
| G3 | B36 | W/6 | : Rear combination lamp RH | ||||
| B4 | B37 | W/18 | : To B400 | ||||
| E2 | B38 | Y/2 | : LH side front curtain air bag module | ||||
| A3 | B40 | W/24 | : To M114 | ||||
| B3 | B41 | W/32 | : Bluetooth control unit | ||||
| B3 | B42 | GR/1 | : Bluetooth control unit | ||||
| G4 | B47 | GR/6 | : To B300 | ||||
| E4 | B56 | W/16 | : Sonar control unit | ||||
| D2 | B57 | B/1 | : Rear window defogger | ||||
| Rear sonar sensor sub-harness | |||||||
| F4 | B300 | GR/6 | : To B47 | ||||
| F4 | B301 | B/3 | : Rear sonar sensor LH outer | ||||
| G4 | B302 | B/3 | : Rear sonar sensor LH inner | ||||
| G4 | B303 | B/3 | : Rear sonar sensor RH inner | ||||
| G4 | B304 | B/3 | : Rear sonar sensor RH outer | ||||
