Body No. 2 Harness

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

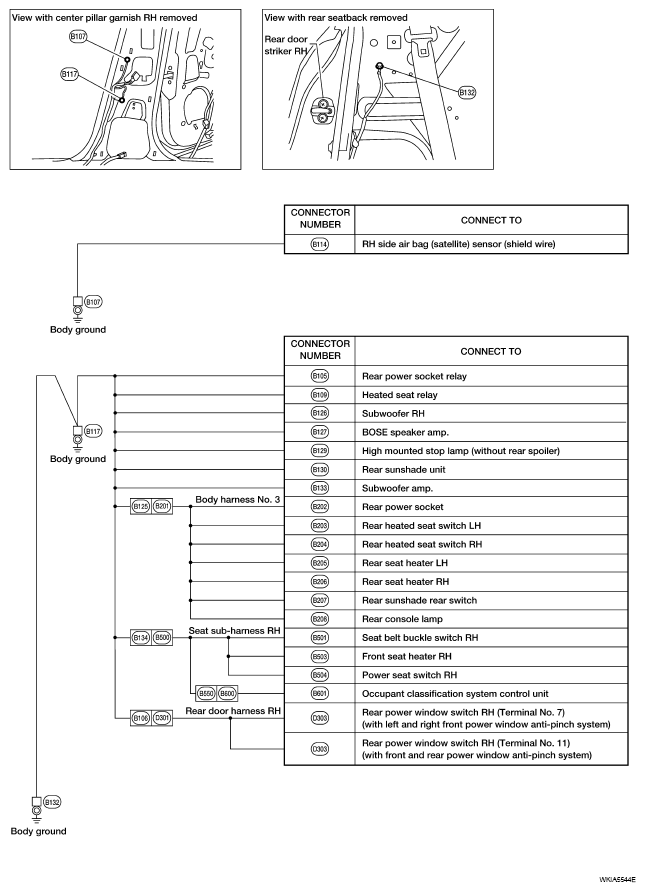

Fig 1: Ground Distribution - Body No. 2 Harness (1 Of 2)
G04918619Courtesy of NISSAN MOTOR CO., U.S.A.

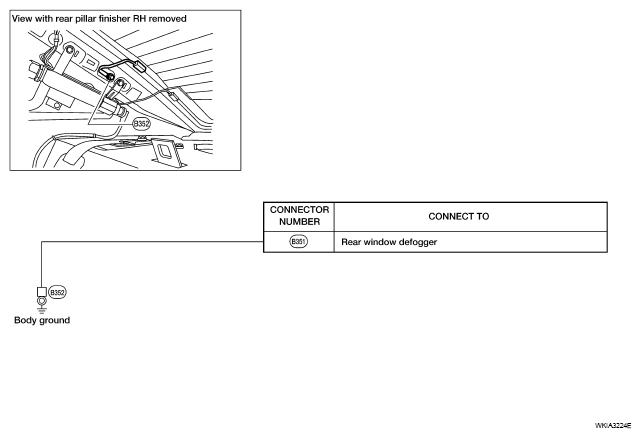

Fig 2: Ground Distribution - Body No. 2 Harness (2 Of 2)
G04918620Courtesy of NISSAN MOTOR CO., U.S.A.
