Wiring Diagram - TURN -

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER

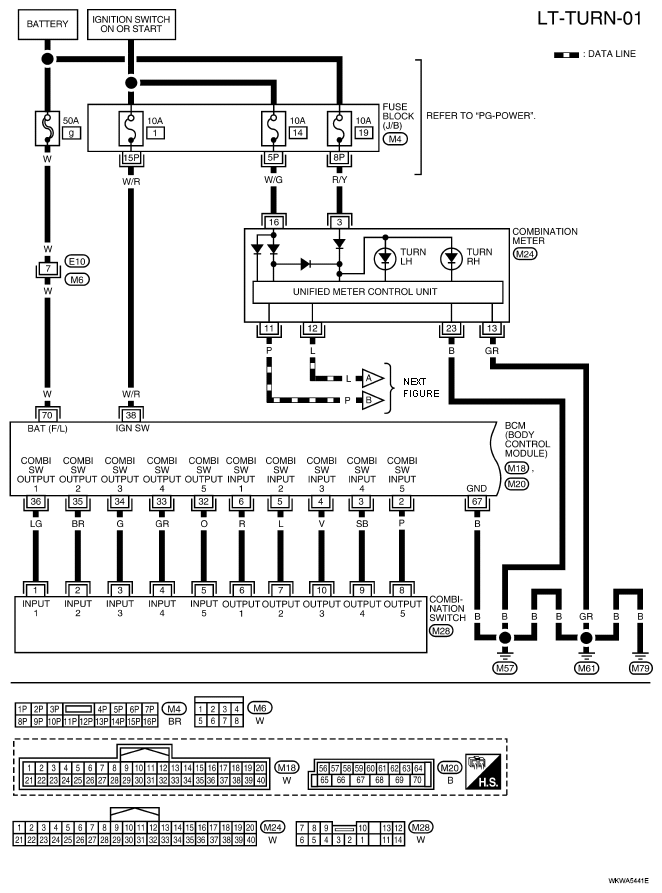

Fig 1: Identifying Wiring Diagram - LT-TURN-01
G04913825

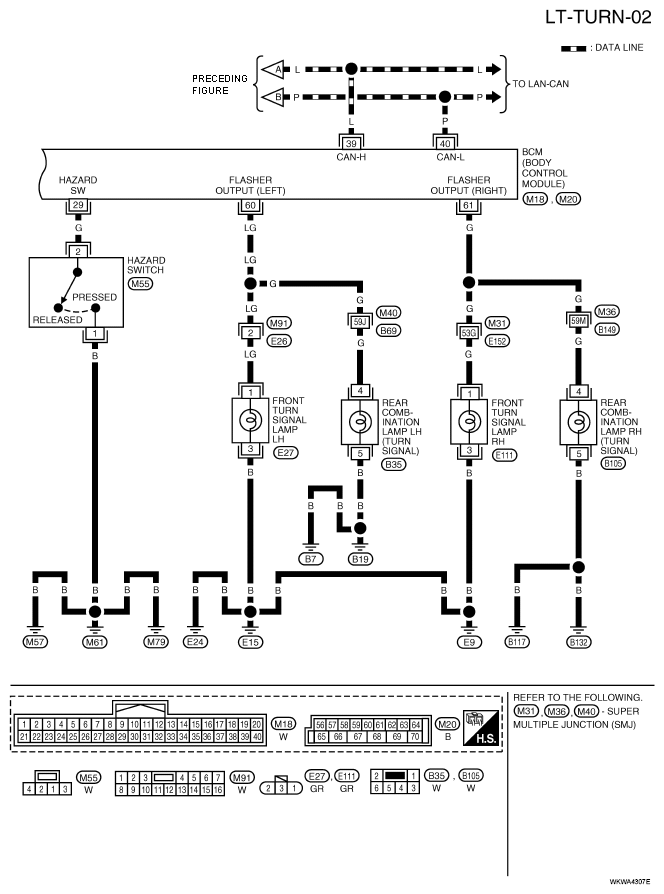

Fig 2: Identifying Wiring Diagram - LT-TURN-02
G04913826
