Wiring Diagram - TAIL/L -

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS -- PATHFINDER

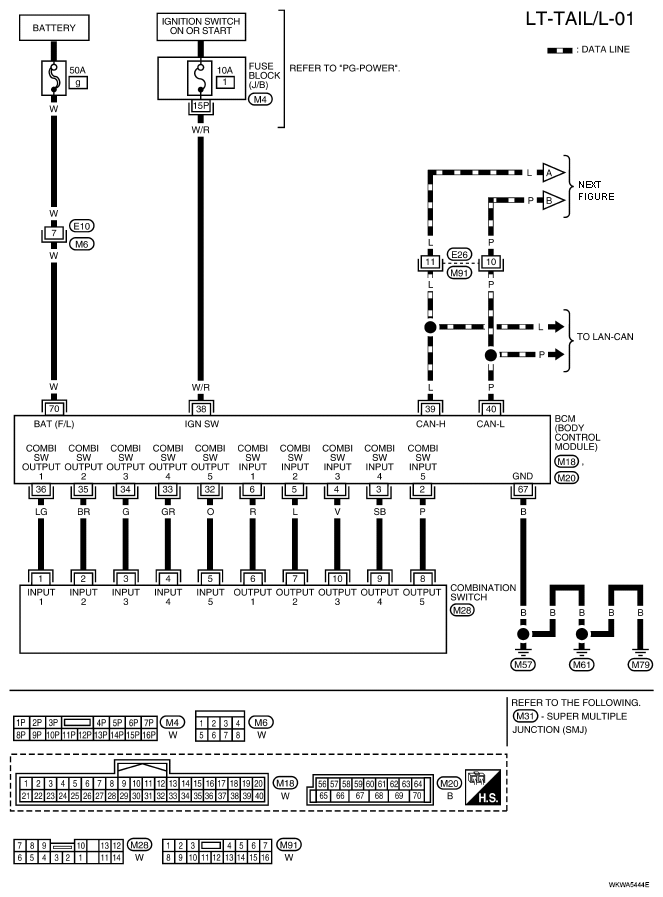

Fig 1: Identifying Wiring Diagram - LT-TAIL/L-01

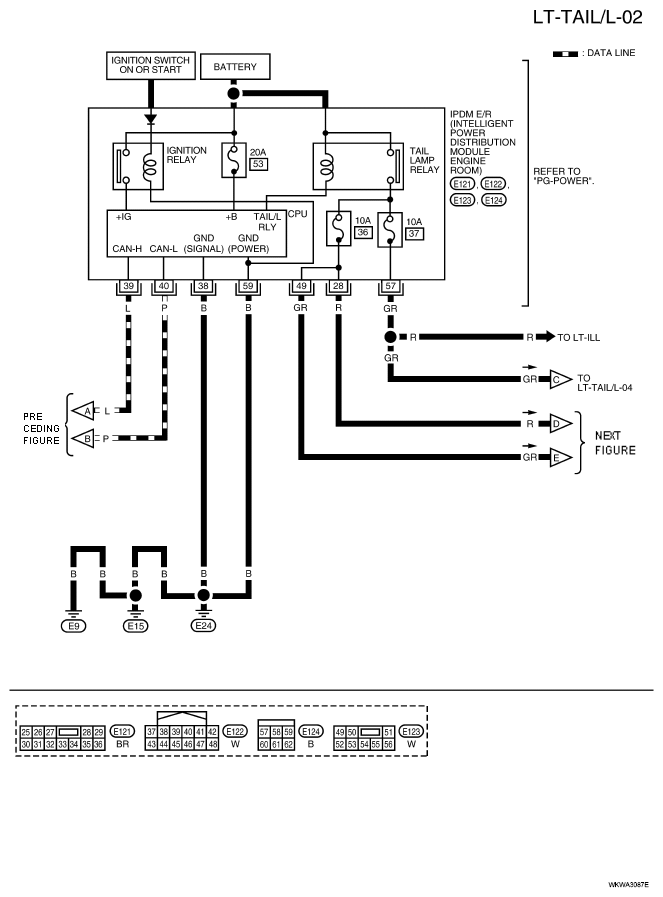

Fig 2: Identifying Wiring Diagram - LT-TAIL/L-02

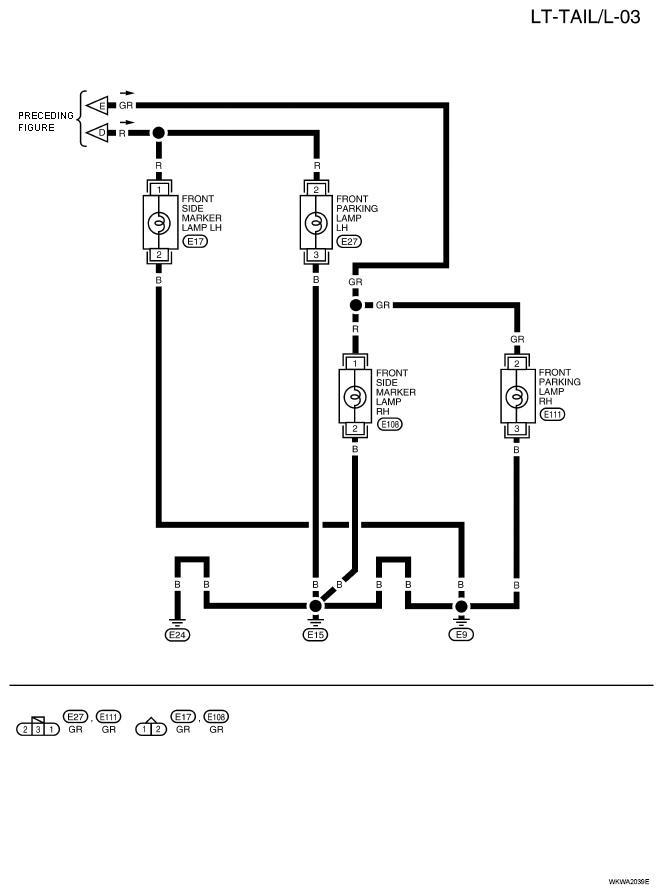

Fig 3: Identifying Wiring Diagram - LT-TAIL/L-03

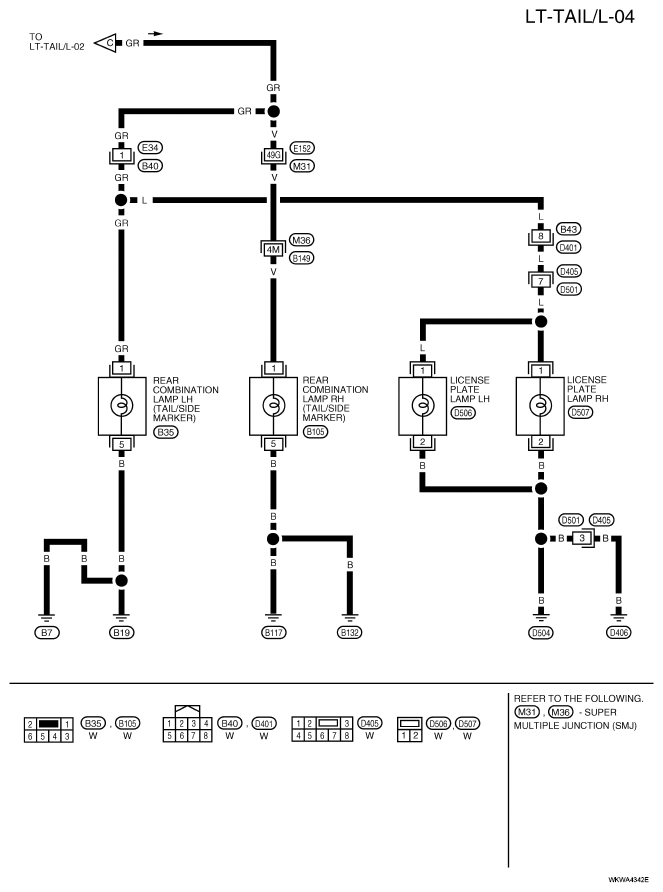

Fig 4: Identifying Wiring Diagram - LT-TAIL/L-04
